65" · 4K UHD · Android 13
BenQ

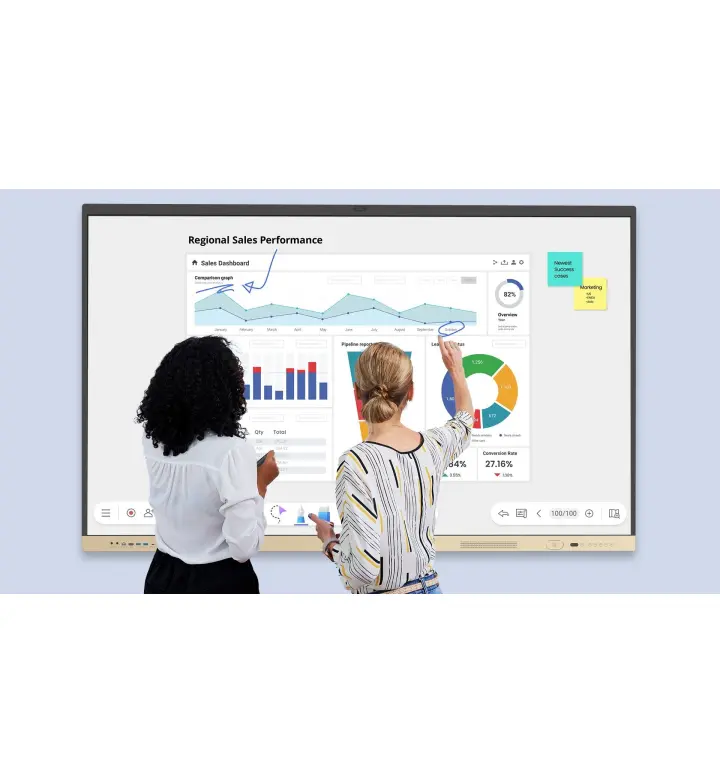

BenQ Board Essential RE7504FV 75" 4K Interactive Display
SKU RE7504FV
75-inch 4K infrared interactive display with 40-point touch, NFC reader, built-in camera, optimal for education and training.
- Screen size
- 75"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 75"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- Infrared
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32767 × 32767
Built-in system
- RAM
- 8 GB
- Operating System
- Android 14.0 (EDLA)
- Processor
- ARM 4× Cortex-A73 + 4× Cortex-A53
- GPU
- Arm Mali-G52 MP8
Description
The BenQ Board Essential RE7504FV is a 75-inch 4K interactive display engineered for educational and training environments where multi-touch collaboration drives learning outcomes. Infrared touch technology delivers 40-point multi-touch at ±1 mm accuracy with <5ms response time, enabling fluid student-instructor interaction. At 450 cd/m² brightness with 10-bit colour depth, the anti-glare surface excels in classrooms with varied natural and artificial lighting. Integrated NFC card reader enables touch-free access control and attendance tracking.
Powered by octa-core processor (A73×4 + A53×4) with Mali-G52 MP8 GPU, 8GB RAM, and 64GB storage running Android 13. Comprehensive connectivity spans 2×HDMI 2.0, DisplayPort 1.2a, dual Gigabit Ethernet, Bluetooth 5.2, and Wi-Fi 6.
- 75" 4K UHD, 60 Hz, 450 cd/m² brightness, 10-bit colour
- 40-point infrared multi-touch, ±1 mm accuracy, <5ms response
- Android 13, Octa-core (A73×4 + A53×4), Mali-G52 MP8, 8GB RAM, 64GB storage
- 2×HDMI 2.0, DisplayPort 1.2a, dual Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2
- Built-in camera, NFC reader, 20W×2 speakers, optional OPS slot, microSD card
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 75"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Surface Protection
- Anti-glare smooth glass
Touch
- Touch Technology
- Infrared
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32767 × 32767
- Touch Response Time
- < 5 ms
System
- Operating System
- Android 14.0 (EDLA)
- Processor
- ARM 4× Cortex-A73 + 4× Cortex-A53
- GPU
- Arm Mali-G52 MP8
- RAM
- 8 GB
- Storage
- 64 GB
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- HDMI Output
- HDMI Out × 1
- DisplayPort
- DisplayPort 1.2a × 1
- VGA input
- VGA × 1
- USB-C input
- USB-C (video, audio, touch, data, 65 W charging)
- USB Ports
- USB 3.0 × 2, USB 2.0 × 2
- Touch USB ports
- Touch USB × 2
- Audio in
- Audio in × 1
- Audio out
- Audio out × 1
- Ethernet
- RJ45 (1000 Mbps Port) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.2
- Serial Port
- RS-232 × 1
- SD card slot
- SD card slot × 1
Camera & audio
- Camera
- 4K UHD, 13 MP, Auto focus, privacy cover
- Built In Microphone
- 8-mic array, 8 m pickup range
- Microphone Range
- 8 m
- Speaker Type
- Built-in Speakers
- Speaker Output
- 20 W × 2
Physical & warranty
- Dimensions
- 1716.5 × 1045.4 × 87.7 mm
- Weight
- 50.5 kg
- Shipping Dimensions
- 1860 × 1125 × 185 mm
- VESA
- 800 × 600 mm, M8 × 25 mm
- Mounting Orientation
- Landscape
- Wall Mount
- 600 × 400 mm (VESA)
- Power Consumption
- 73.9 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0 to 40 °C
- Operating Humidity
- 20% to 80% RH
Other
- Key Features
- Wake on LAN, NFC card reader, Sensors: Ambient light, NFC, IR receiver
- Package Contents
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable, Remote Control, Stylus × 2, Quick Start Guide, Regulation Sheet, Wall Mount
- Included Cables
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable
- Accessories
- Remote Control, Stylus × 2, Quick Start Guide, Regulation Sheet, Wall Mount
