ELO 3204L 32" Full HD Interactive Display, 40-point Touch (E103164)

Elo

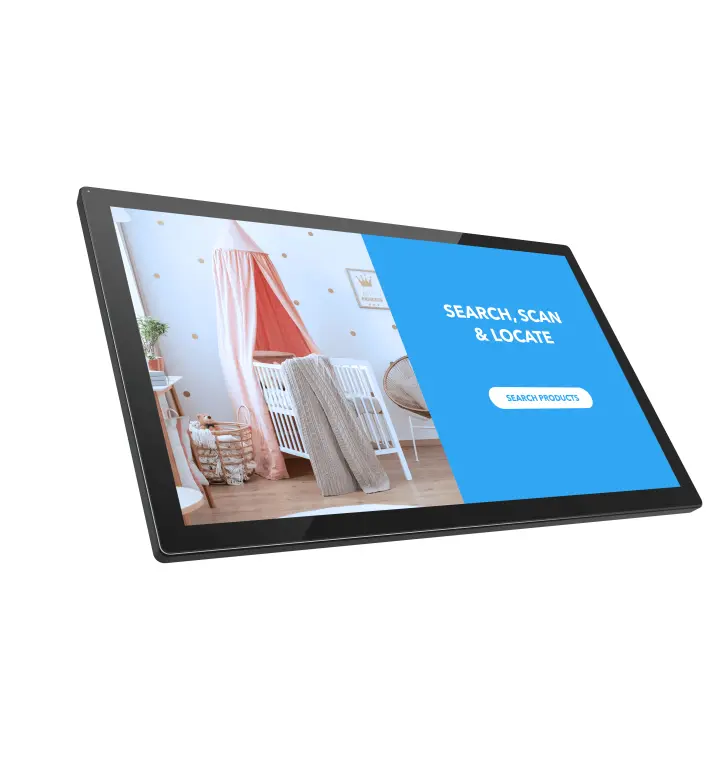

ELO 3204L 32" Full HD Interactive Display, 40-point Touch

MPN E103164 SKU E103164

32-inch Full HD interactive display with 40-point touchscreen for kiosks, small meeting spaces, and departmental collaboration in Oman offices and schools.

Screen size
32"
Resolution
Full HD
Touch
40 points
VESA
400 × 400 mm

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Backlight
TFT LCD
Screen Size
31.5" / 800.1 mm diagonal
Resolution
1920 × 1080 (Full HD)
Display Color
16.7 million, 8bit(D)

Touch and writing

Touch Technology
TouchPro® PCAP
Touch Points
40-point multi-touch
Touch Response Time
8 msec (typical)

Ports and connections

HDMI Input
2× HDMI 1.4
DisplayPort
DP 1.2 × 1
USB-C input
USB-C × 1
USB Ports
Micro USB 2.0 × 4, USB-A × 1

Description

The ELO 3204L is a compact 32-inch Full HD interactive flat panel with 1920 × 1080 resolution. Its 40-point capacitive touchscreen with palm rejection delivers 8-millisecond response time, ideal for interactive departmental use, small-group collaboration, and digital information kiosks where space is limited.

The clear anti-friction surface provides durable interactive capability without fingerprints. Brightness reaches 320 nits with PCAP overlay, sufficient for most office environments. USB-C carries both touch and video data simultaneously. Dual HDMI 1.4 and DisplayPort 1.2 offer connection flexibility. Built-in 5W stereo speakers support audio for kiosk prompts and meeting sound. Dual Ethernet ports enable network connectivity. Power consumption of 45W reflects efficient operation for extended daily use.

Ideal for: information kiosks in government offices, small training rooms, departmental meeting spaces, retail counters, and compact collaborative environments throughout Oman.

  • 32-inch diagonal, 1920 × 1080 Full HD
  • 40-point touch with anti-friction surface
  • 320 nits brightness (LCD: 400 nits)
  • 8ms response time with palm rejection
  • USB-C, dual HDMI 1.4, DisplayPort 1.2
  • Dual RJ45 Ethernet for network integration

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size
31.5" / 800.1 mm diagonal
Resolution
1920 × 1080 (Full HD)
Display Color
16.7 million, 8bit(D)
Brightness
LCD Panel 400 nits; with PCAP 320 nits
Backlight
TFT LCD
Refresh Rate
60 Hz
Viewing Angle
Horizontal: ±89°/178° total; Vertical: ±89°/178° total
Ambient Light Sensor
Yes
Surface Protection
Clear with Anti-Friction

Touch

Touch Technology
TouchPro® PCAP
Touch Points
40-point multi-touch
Touch Response Time
8 msec (typical)
Palm Rejection
Yes

System

Sensors
Ambient Light Sensor

Connectivity

HDMI Input
2× HDMI 1.4
DisplayPort
DP 1.2 × 1
USB-C input
USB-C × 1
USB Ports
Micro USB 2.0 × 4, USB-A × 1
Audio out
Audio out × 1
Ethernet
RJ45 × 2
Serial Port
RS-232 × 1

Camera & audio

Speaker Type
Built-in Speakers
Speaker Output
2 × 5 W stereo speakers

Physical & warranty

Dimensions
30.07" x 18.04" x 1.95" / 763.7 mm x 458.1 mm x 49.6 mm
Weight
Unpackaged: 26.17 lbs / 10.9 kg
Shipping Dimensions
35.62" x 26.77" x 6.30" / 905 mm x 680 mm x 160 mm
VESA
400 × 400 mm
Wall Mount
VESA 400 × 400mm, M6
Power Consumption
ON: 45 W, SLEEP: 2.3 W, OFF: 0.29 W
Power Standby
0.29 W
Operating Temperature
0°C to 40°C (Portrait/Landscape/Tilt); 0°C to 35°C (Tabletop)
Operating Humidity
20% - 80% operating; 10% - 95% storage
Warranty
3 years standard with AUR included

Other

MPN
3204L
Key Features
Palm rejection, Sensors: Ambient light
Package Contents
Power cables (IEC 60320-C13 to NA plug, IEC 60320-C13 to EU/KR plug, IEC 60320-C13 to UK plug), AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m), USB cable (Type-C to Type-C), Quick Install Guide, Energy label, 1 × EU EEI, 2 × UK EEI, 4 × M4×6 mm flat head screws
Included Cables
Power cables (IEC 60320-C13 to NA plug, IEC 60320-C13 to EU/KR plug, IEC 60320-C13 to UK plug), AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m), USB cable (Type-C to Type-C)
Accessories
Quick Install Guide, Energy label, 1× EU EEI, 2× UK EEI, 4× M4×6mm flat head screws
