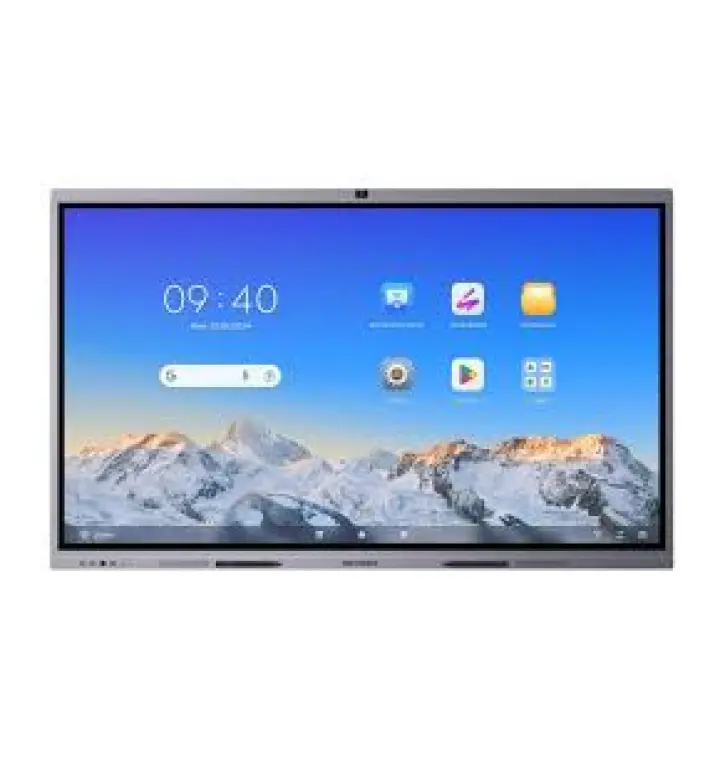

Hikvision DS-D5C 86" 4K Interactive Panel, 50pt Touch
SKU DS-D5C86RB/A2L
86-inch 4K interactive display with infrared touch (50 points), 480 cd/m² brightness, Android 14 OS, and multiple HDMI inputs for large-format collaboration.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 480 cd/m²
Touch and writing
- Touch Points
- 50 points
- Touch Technology
- Infrared
- Touch Accuracy
- ±0.5 mm
- Touch Resolution
- 32768 × 32768
Built-in system
- Operating System
- Android 16
- Processor
- ARM 4× Cortex-A76 + 4× Cortex-A55, 2.4 GHz + 1.8 GHz
- GPU
- Arm Mali-G610 MC4
- RAM
- 8 GB
Description
An 86-inch interactive flat panel with 4K UHD resolution and 50-point infrared multi-touch for responsive interaction in large meeting spaces and auditoriums across Oman. Delivers 480 cd/m² brightness (DLED backlight, 178° viewing angle both horizontal and vertical), 60Hz refresh rate, ensuring visibility in well-lit environments.
Features Android 14 with 3×HDMI input and 1×HDMI output, 4×USB 3.0 and 1×USB 2.0 ports, dual Gigabit LAN, Bluetooth 5.4, and advanced audio: 2×20W + 25W built-in speakers. Processor: Quad-core Cortex-A76 ×4 (2.4 GHz) and Quad-core Cortex-A55 ×4 (1.8 GHz). VESA mount 800×400 mm. Power consumption under 237W typical. Includes 3M HDMI cable, 3M touch USB cable, 3M power cable, wall mount bracket, remote control, and stylus pen.
Ideal for: Large government chambers, university lecture halls, corporate boardrooms, hospital consultation suites, and public information displays requiring high brightness, multi-source connectivity and robust multi-touch responsiveness.
- Screen size: 86"
- Resolution: 4K UHD
- Touch: 50-point infrared multi-touch
- Brightness: 480 cd/m²
- Operating system: Android 14
- Video inputs: 3×HDMI In, 1×HDMI Out
- USB: 4×USB 3.0, 1×USB 2.0
- Audio: 2×20W + 25W built-in speakers
- Connectivity: 2×Gigabit LAN, Bluetooth 5.4
- Processor: Cortex-A76 ×4 (2.4 GHz) + Cortex-A55 ×4 (1.8 GHz)
- Power: <237W; VESA 800×400 mm; dimensions 1713.2×1034.5×114.5 mm, 45.9±0.5 kg
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 480 cd/m²
- Backlight
- DLED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Anti-glare & anti-fingerprint glass
Touch
- Touch Technology
- Infrared
- Touch Points
- 50 Points Multi Touch
- Touch Accuracy
- ±0.5 mm
- Touch Resolution
- 32768 × 32768
- Touch Response Time
- 2 ms
System
- Operating System
- Android 16
- Processor
- ARM 4× Cortex-A76 + 4× Cortex-A55, 2.4 GHz + 1.8 GHz
- GPU
- Arm Mali-G610 MC4
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In (HDMI 2.1) × 3
- HDMI Output
- HDMI Out (HDMI 2.1) × 1
- VGA input
- VGA × 1 (Rear)
- USB-C input
- USB-C × 2 (USB 2.0, DP 1.2 in, 100 W charging)
- USB Ports
- USB 3.0 × 4, USB 2.0 × 1
- Touch USB ports
- Touch USB 3.0 × 1, Touch USB 2.0 × 2
- Audio in
- Audio in × 1
- Audio out
- Audio out × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5 GHz
- Bluetooth
- Bluetooth 5.4
- Serial Port
- RS-232 × 1
Camera & audio
- Camera
- 48 MP
- Built In Microphone
- 8-mic array, 12 m pickup range
- Microphone Range
- 12 m
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20 W + 25 W
Physical & warranty
- Dimensions
- 1960.4 × 1158.2 × 82.4 mm
- Weight
- 58.5 ± 0.5 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- < 274 W
- Operating Temperature
- 0°C to 40°C
- Operating Humidity
- 10% to 90% RH
Other
- Key Features
- NFC card reader, Sensors: Ambient light, Humidity, Temperature
- Included Cables
- 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable
- Accessories
- Wall mount bracket, hook, user manual, touch writing pen, packing list, remote control, screen cleaning cloth
