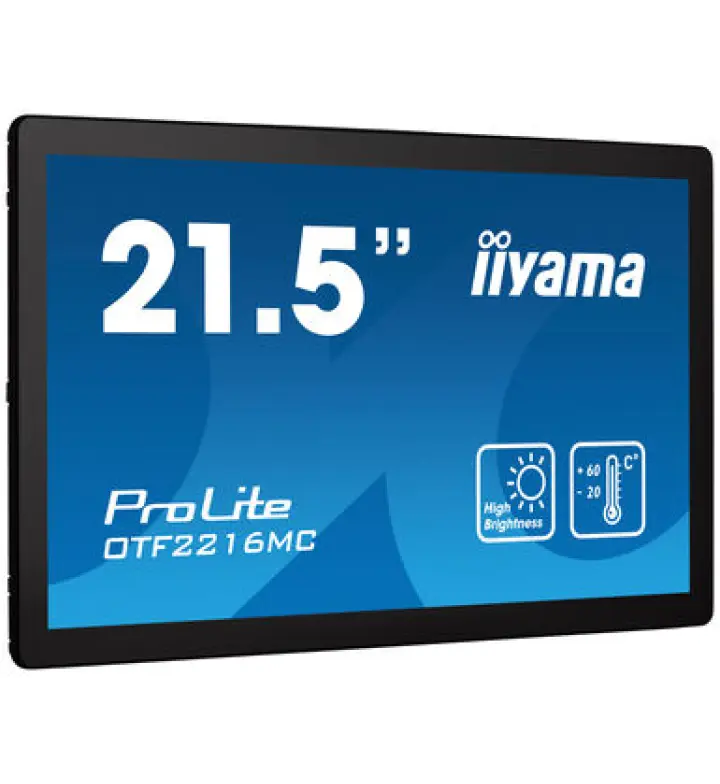

Iiyama ProLite OTF2216MC-B1 21.5" High-Brightness Touchscreen

iiyama

Iiyama ProLite OTF2216MC-B1 21.5" High-Brightness Touchscreen

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN OTF2216MC-B1 SKU OTF2216MC-B1

21.5-inch outdoor-grade touchscreen with 1100 cd/m² brightness, 10 PCAP touch points, and palm rejection for public-facing and outdoor installations.

Screen size: 21.5"
Resolution: Full HD
Touch: 10 points

Pricing

Price on request in OMR

Include in your quote

Installation Mounting / trolley Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size: 21.5 inch
Resolution: 1920 × 1080
Display Color: 8bit
Brightness: 935 cd/m²

Touch and writing

Touch Points: 10 points
Touch Technology: Projected Capacitive Touch
Touch Response Time: 25ms (BTB)

Ports and connections

HDMI Input: HDMI × 1
DisplayPort: DisplayPort Input × 1
VGA input: VGA × 1
Touch USB ports: USB

Description

The Iiyama ProLite OTF2216MC-B1 is a 21.5-inch high-brightness interactive display delivering 1100 cd/m² brightness (935 cd/m² with touch active) and 1920×1080 resolution. Designed for outdoor and high-ambient-light environments, it uses projective capacitive touch with 10 points and palm rejection to prevent false inputs in high-glare conditions.

Equipped with VGA, HDMI, and DisplayPort connectivity, ambient light sensor with auto-fan cooling, and temperature control for stable operation across -20°C to +60°C range. Power consumption is 43W typical (1.5W standby), and the display features anti-glare smooth glass with 25ms touch response time and 178° viewing angles.

Ideal for: Outdoor information kiosks, transit terminals, retail service areas, public waiting zones, and high-brightness venues where larger-format touch interaction is required.

21.5-inch 1920×1080 resolution, 1100 cd/m² brightness
10-point projective capacitive touch with palm rejection
VGA, HDMI, and DisplayPort 1.2 inputs
Gigabit LAN (RJ45), USB ports, audio mini-jack output
Operating temperature -20°C to +60°C with auto-fan cooling
VESA 100×100mm mount, 4.6kg weight (unboxed)
25ms touch response time, anti-glare surface

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size: 21.5 inch
Resolution: 1920 × 1080
Display Color: 8bit
Brightness: 935 cd/m²
Backlight: VA
Refresh Rate: 60 Hz
Viewing Angle: 178° (H) / 178° (V)
Ambient Light Sensor: Yes
Surface Protection: Anti-Glare Smooth Glass

Touch

Touch Technology: Projected Capacitive Touch
Touch Points: 10 Points Multi Touch
Touch Response Time: 25ms (BTB)
Palm Rejection: Yes

System

Sensors: ambient light sensor, proximity sensor, temperature-controlled auto FAN cooling

Connectivity

HDMI Input: HDMI × 1
DisplayPort: DisplayPort Input × 1
VGA input: VGA × 1
Touch USB ports: USB
Audio out: Mini jack × 1
Ethernet: Gigabit LAN (RJ45) × 1

Physical & warranty

Dimensions: 520 × 315 × 42.5 mm
Weight: 4.6 kg
Shipping Dimensions: 608 × 400 × 150 mm
Shipping Weight: 4.5 kg
Wall Mount: 100 × 100 mm (VESA)
Power Consumption: 43 W
Power Standby: 1.5 W
Operating Temperature: -20°C to 60°C

Other

Included Cables: power, USB, HDMI, DP
Accessories: quick start guide, safety guide, AC adapter, cable cover, external control pad
More Information: https://iiyama.com/gb_en/products/prolite-otf2216mc-b1/
