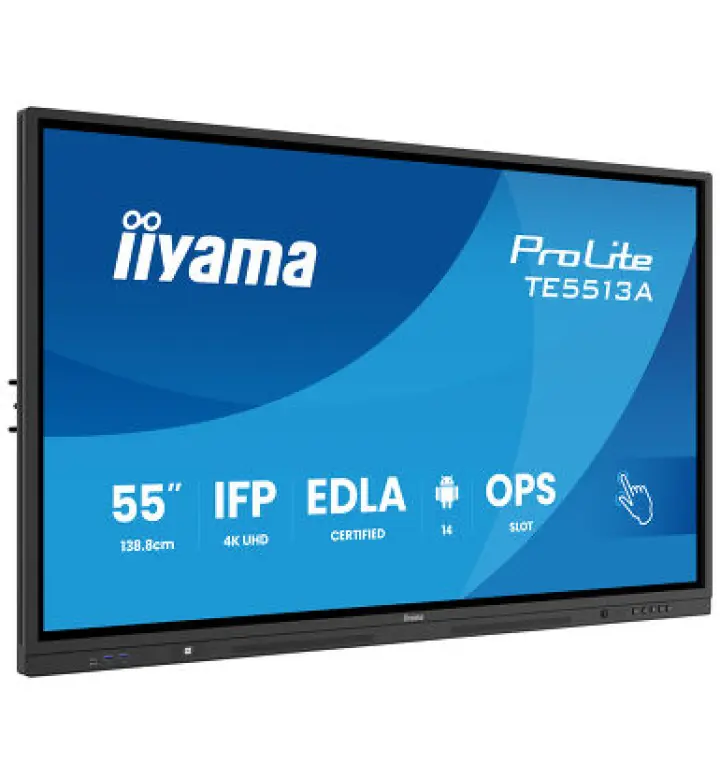

IIYAMA ProLite TE5513A-B1AG 55" 4K Interactive Display (TE5513A-B1AG)

iiyama

IIYAMA ProLite TE5513A-B1AG 55" 4K Interactive Display

MPN TE5513A-B1AG SKU TE5513A-B1AG

55" 4K UHD interactive panel, quad-core A73, 8GB RAM, 128GB storage, 500 cd/m² peak brightness. IPS backlight, Google EDLA certified, ±1mm touch accuracy.

Screen size
55"
Resolution
4K UHD
Touch
40 points
System
Android 14

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size
55 inch
Resolution
3840 × 2160 (8.3 megapixel 4K UHD)
Display Color
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Brightness
500 cd/m²

Touch and writing

Touch Technology
PureTouch-IR
Touch Accuracy
± 1 mm

Built-in system

Operating System
Android 14.0
Processor
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
GPU
G52 MC1
RAM
8 GB

Description

The IIYAMA ProLite TE5513A-B1AG is a 55-inch 4K UHD interactive flat panel running iiWare 21E (Android 14 OS) with Google EDLA certification. Quad-core A73 processor at 1.4 GHz with Mali-G52 MC1 GPU delivers responsive performance for interactive teaching and corporate meetings.

8 GB RAM and 128 GB ROM support high-volume content. Peak brightness of 500 cd/m² exceeds most comparable displays, with ambient light sensor, PIR motion sensor, and pen pick-up detection for context-aware operation. 40-point infrared touch with 10-point writing achieves ±1 mm accuracy. IPS backlight with anti-glare, anti-bacterial coating and zero-gap air bonding ensures durability. Dual Gigabit Ethernet with auto-switch for PC/Android, Wi-Fi 6, Type-C with DP 1.2 alt mode (100W front, 65W side PD), two HDMI 2.0 inputs, and six USB 3.2 Gen1 ports.

Ideal for: Smaller teaching spaces, training rooms, boardrooms, and smart meeting centers across Oman requiring high brightness and advanced touch sensing capabilities.

  • 55" display, 4K UHD (3840×2160), 60 Hz refresh
  • Quad-core A73 processor, Mali-G52 MC1 GPU
  • 40-point touch with 10-point writing, ±1 mm accuracy
  • 8 GB RAM, 128 GB ROM, Android 14 with Google EDLA
  • 500 cd/m² peak brightness, 10-bit color, IPS panel
  • Ambient light, motion, and pen sensors; Wi-Fi 6; dual Gigabit Ethernet

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size
55 inch
Resolution
3840 × 2160 (8.3 megapixel 4K UHD)
Display Color
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Brightness
500 cd/m²
Backlight
IPS
Refresh Rate
200Hz
Viewing Angle
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Blue Light Filter
Yes
Ambient Light Sensor
Yes
Surface Protection
Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding

Touch

Touch Technology
PureTouch-IR
Touch Points
40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Touch Accuracy
± 1 mm
Palm Rejection
Yes

System

Operating System
Android 14.0
Processor
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
GPU
G52 MC1
RAM
8 GB
Storage
128 GB
OPS slot
OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
Sensors
Ambient light sensor, PIR Motion Sensor

Connectivity

HDMI Input
HDMI In (HDMI 2.0) × 2
HDMI Output
HDMI Out × 1
DisplayPort
Display Port 1.2 Input x 1
USB-C input
Type-C × 2 (Front × 1; Side × 1)
USB-C functions
3.2 (Gen 1, 5Gbit), 3840×2160@60Hz (RGB444), DP 1.2 Alt mode, PD (1× front 100W, 1× side 65W), Data, Touch
USB Ports
x6 (media playback / peripherals / storage – front side: 1× USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2× 3.2 (Gen 1, 5Gbit), side: 1× USB-C 2.0 (480 Mbps, 65W PD), 1× 2.0 (480Mbps), 1× 3.2 (Gen 1, 5Gbit))
Additional Ports
HDMI x2 (2.0, max. 3840×2160 @60Hz, YUV444, ARC on HDMI #1); DisplayPort x1 (1.2, max. 3840×2160 @60Hz); USB-C x2 (front: 1× 3.2 (Gen1, 5Gbit, 100W PD), side: 1× 2.0 (480 Mbps, 65W PD), 3840×2160 @60Hz (RGB444), DP 1.2 Alt mode, Data, Touch); HDMI x1 (2.0, max. 3840×2160 @60Hz, YUV444 / RGB444)
Audio in
Mini jack x1 (Microphone)
Audio out
S/PDIF (Optical) x1; Mini jack x1 (Headphone); Speakers 2 × 20W (Front facing + 20W Subwoofer on the backside)
Ethernet
x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
Wi-Fi
yes (WiFi-6, Bluetooth 5.0)
Bluetooth
Bluetooth 5.0
Serial Port
RS232 × 1
Connectivity Options
USB; RS-232c x1 (DSUB 9pin)

Camera & audio

Speaker Type
Built-in Speakers
Speaker Output
2 × 20W (Front facing + 20W Subwoofer)

Physical & warranty

Dimensions
1267 × 765.4 × 86 mm
Weight
28.7 kg
Shipping Dimensions
1385 × 865 × 185 mm
Shipping Weight
34.8 kg
VESA
400 × 400mm
Mounting Orientation
landscape
Wall Mount
400 × 400 mm (VESA)
Material
metal
Finishes
black, matte
Power Consumption
125W typical, 0.5W stand by, 0.3W off mode
Power Standby
0.5 W
Operating Temperature
0 °C - 40 °C
Certifications
CB, CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Warranty
5 Years

Other

Package Contents
power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Included Cables
Power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Accessories
Remote control, Touch pen × 4, Wall Mounting Bracket, Webcam Mounting Bracket, Quick start guide, Safety guide
