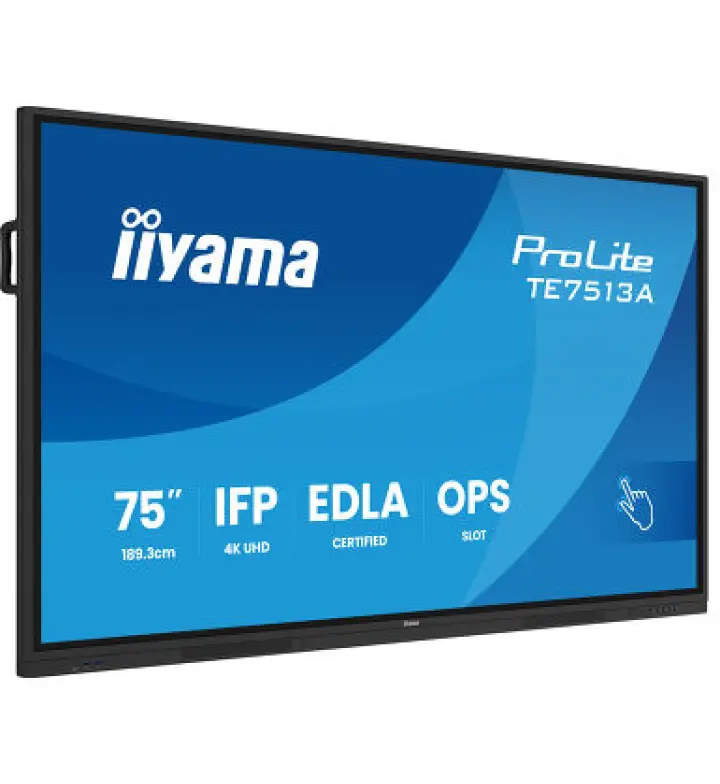

IIYAMA ProLite TE7513A-B1AG 75" 4K Interactive Display (TE7513A-B1AG)

iiyama

IIYAMA ProLite TE7513A-B1AG 75" 4K Interactive Display

MPN TE7513A-B1AG SKU TE7513A-B1AG

75" 4K UHD interactive display, quad-core A73, 8GB RAM, 128GB storage, 500 cd/m² brightness. IPS panel, Google EDLA, motion and pen sensors, ±1mm touch.

Screen size
75"
Resolution
4K UHD
Touch
40 points
System
Android 14

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size
75", 189.3cm
Resolution
3840 × 2160 (8.3 megapixel 4K UHD)
Display Color
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Brightness
500 cd/m²

Touch and writing

Touch Technology
PureTouch-IR+
Touch Points
40, 10pt writing
Touch Accuracy
± 1 mm

Built-in system

Operating System
Android 14.0
Processor
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
GPU
G52 MC1
RAM
8 GB

Description

The IIYAMA ProLite TE7513A-B1AG is a large-format 75-inch 4K UHD interactive flat panel running iiWare 21E (Android 14) with Google EDLA certification. Quad-core A73 processor (1.4 GHz) and Mali-G52 MC1 GPU deliver consistent performance for high-traffic educational and corporate environments.

8 GB RAM and 128 GB ROM support demanding collaborative applications. 500 cd/m² peak brightness with ambient light sensor, PIR motion detection, and pen pick-up sensor enables context-aware display management. 40-point infrared touch with 10-point writing capability achieves ±1 mm accuracy for precise interaction. IPS backlight with anti-glare, anti-bacterial coating, and zero-gap construction ensures durability. Optional Intel OPS PC slot for integrated computing. Dual Gigabit Ethernet with auto-switch, Wi-Fi 6, Type-C with DP 1.2 alt mode (100W front, 65W side), two HDMI 2.0 inputs, and five USB 3.2 Gen1 ports.

Ideal for: Large lecture halls, government briefing centers, corporate auditoriums, and university learning commons across Oman requiring premium display size and institutional-grade performance.

  • 75" display, 4K UHD (3840×2160), 60 Hz refresh
  • Quad-core A73 processor, Mali-G52 MC1 GPU
  • 40-point touch with 10-point writing, ±1 mm accuracy
  • 8 GB RAM, 128 GB ROM, Android 14 with Google EDLA
  • 500 cd/m² brightness, 10-bit color, IPS backlight
  • Motion, ambient light, and pen sensors; Intel OPS slot; Wi-Fi 6

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size
75", 189.3cm
Resolution
3840 × 2160 (8.3 megapixel 4K UHD)
Display Color
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Brightness
500 cd/m²
Backlight
IPS
Refresh Rate
200Hz
Viewing Angle
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Blue Light Filter
Yes
Ambient Light Sensor
Yes
Surface Protection
Anti-Glare Smooth Glass

Touch

Touch Technology
PureTouch-IR+
Touch Points
40, 10pt writing
Touch Accuracy
± 1 mm
Palm Rejection
Yes

System

Operating System
Android 14.0
Processor
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
GPU
G52 MC1
RAM
8 GB
Storage
128 GB
OPS slot
OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
Sensors
Ambient light sensor, Pen Pick-up Sensor, PIR Motion Sensor

Connectivity

HDMI Input
HDMI In (HDMI 2.0) × 2
HDMI Output
HDMI Out × 1
DisplayPort
Display Port 1.2 Input x 1
USB-C input
Type-C × 2 (Front × 1; Side × 1)
USB-C functions
Supports USB 3.2 Gen 1, 100W Charging, DP IN 1.2, Data, Touch
USB Ports
x5 (media playback / peripherals / storage – front side: 1× USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2× 3.2 (Gen 1, 5Gbit), side: 1× USB-C 2.0 (480 Mbps, 65W PD), 1× 2.0 (480Mbps), 1× 3.2 (Gen 1, 5Gbit))
Additional Ports
HDMI x2 (2.0, max. 3840×2160 @60Hz, YUV444, ARC on HDMI #1); DisplayPort x1 (1.2, max. 3840×2160 @60Hz); USB-C x2 (front: 1× 3.2 (Gen1, 5Gbit, 100W PD), side: 1× 2.0 (480 Mbps, 65W PD), 3840×2160 @60Hz (RGB444), DP 1.2 Alt mode, Data, Touch); HDMI x1 (2.0, max. 3840×2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display))
Audio in
Mini jack x1 (Microphone)
Audio out
S/PDIF (Optical) x1; Mini jack x1 (Headphone); Speakers 2 × 20W (Front facing + 20W Subwoofer on the backside)
Ethernet
x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
Wi-Fi
yes (WiFi-6, Bluetooth 5.0)
Bluetooth
Bluetooth 5.0
Serial Port
RS232 × 1
Connectivity Options
USB; RS-232c x1

Camera & audio

Speaker Type
Built-in Speakers
Speaker Output
2 × 20W (Front facing + 20W Subwoofer)

Physical & warranty

Dimensions
1710 × 1016 × 87 mm
Weight
51.8 kg
Shipping Dimensions
1860 × 1125 × 185 mm
Shipping Weight
63 kg
VESA
800 × 400mm
Mounting Orientation
landscape
Wall Mount
800 × 400 mm (VESA)
Material
metal
Finishes
black, matte
Power Consumption
217W typical, 0.5W stand by, 0.3W off mode
Power Standby
0.5 W
Operating Temperature
0 °C - 40 °C
Certifications
CB, CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Warranty
5 Years

Other

Package Contents
power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Included Cables
Power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Accessories
Remote control, Touch pen × 4, Wall Mounting Bracket, Webcam Mounting Bracket, Quick start guide, Safety guide
