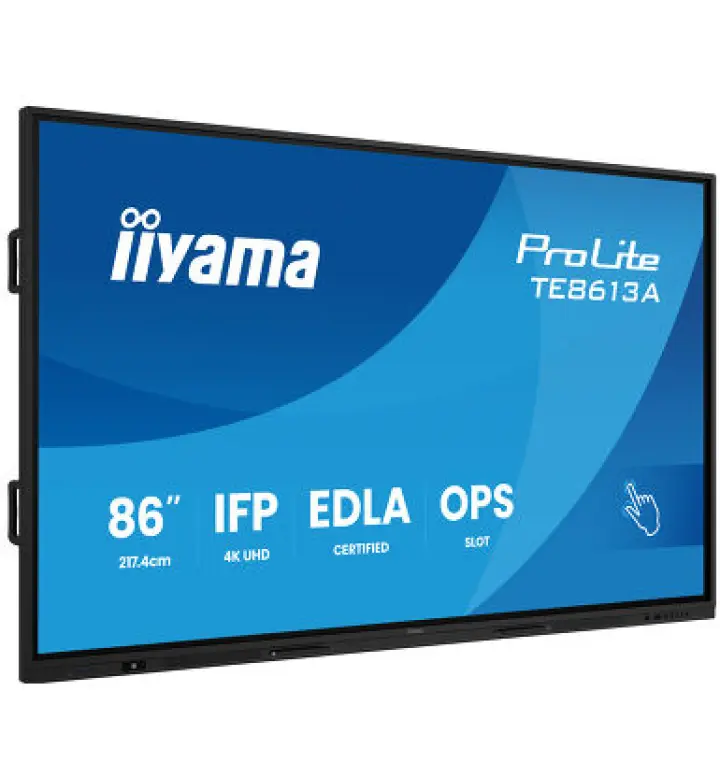

IIYAMA ProLite TE8613A-B1AG 86" 4K UHD Interactive Display, Google EDLA
MPN TE8613A-B1AG
SKU TE8613A-B1AG
86-inch 4K UHD interactive display, 500 cd/m² brightness, 40-point infrared touch, built-in 8-array microphone, Google EDLA certification. Enterprise classroom solution.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160 (8.3 megapixel 4K UHD)
- Display Color
- 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
- Brightness
- 500 cd/m²
Touch and writing
- Touch Technology
- PureTouch-IR
- Touch Accuracy
- ± 1 mm
Built-in system
- Operating System
- Android 14.0
- Processor
- CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
- GPU
- G52 MC1
- RAM
- 8 GB
Description
IIYAMA ProLite TE8613A-B1AG is a Google EDLA-certified interactive display for enterprise and educational environments. The 86-inch 4K UHD panel (3840×2160) delivers 500 cd/m² brightness with anti-glare glass, anti-gloss treatment, anti-bacterial coating and zero-gap air bonding for optimal optical performance. iiWare 21E operating system (Android 14 OS) runs on Quad-core A73 processor with 8GB RAM and 128GB storage. Infrared 40-point touch technology with ±1mm accuracy.
Comprehensive audio system includes 8-array microphone with 8m voice pick-up range and built-in speakers (2×20W front + 20W subwoofer). I/O encompasses 2 HDMI inputs (2.0, with ARC on HDMI #1), DisplayPort 1.2, dual Gigabit Ethernet, multiple USB 3.2 and USB-C ports with 100W and 65W PD charging, and serial RS232 port. Optical SPDIF audio output for external systems. Ambient light sensor, pen pick-up sensor, and PIR motion sensor enable smart features. Power consumption 282W typical; standby 0.5W, off mode 0.3W. Includes 3m power, USB and HDMI cables.
Ideal for: University lecture halls, corporate training centers, government education facilities, and large-format collaborative spaces in Oman requiring certified interactive displays with comprehensive audio and network capabilities.
- Screen: 86", 4K UHD (3840×2160), anti-glare glass, 178° viewing angle
- Touch: Infrared PureTouch-IR+, 40 points, ±1mm accuracy, <5ms response
- Brightness: 500 cd/m², 8.3 megapixel resolution, anti-bacterial coating
- System: iiWare 21E (Android 14, Google EDLA), Quad-core A73 1.4GHz, Mali G52 MC1 GPU, 8GB RAM, 128GB ROM
- Audio: 8-array microphone (8m range), 2×20W front + 20W subwoofer, optical SPDIF output
- I/O: HDMI×2 (with ARC), DisplayPort 1.2, RJ45×2, USB 3.2×2 Gen1, USB-C×2 (100W/65W PD), RS232×1
- Sensors: Ambient light, pen pick-up, PIR motion; power 282W typical, <0.5W standby; VESA 800×600
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160 (8.3 megapixel 4K UHD)
- Display Color
- 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
- Brightness
- 500 cd/m²
- Backlight
- IPS
- Refresh Rate
- 200Hz
- Viewing Angle
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Blue Light Filter
- Yes
- Ambient Light Sensor
- Yes
- Surface Protection
- Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Touch
- Touch Technology
- PureTouch-IR
- Touch Points
- 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
- Touch Accuracy
- ± 1 mm
- Palm Rejection
- Yes
System
- Operating System
- Android 14.0
- Processor
- CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
- GPU
- G52 MC1
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
- Sensors
- Ambient light sensor, Pen Pick-up sensor, PIR motion sensor
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- HDMI Output
- HDMI Out × 1
- DisplayPort
- Display Port 1.2 Input x 1
- USB-C input
- Type-C × 2 (Front × 1; Side × 1)
- USB-C functions
- USB 3.2 (Gen 1, 5Gbit), 100W/65W Charging, DP IN 1.2 Alt mode, Data, Touch
- USB Ports
- x6 (media playback / peripherals / storage – front side: 1× USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2× 3.2 (Gen 1, 5Gbit), side: 1× USB-C 2.0 (480 Mbps, 65W PD), 1× 2.0 (480Mbps), 1× 3.2 (Gen 1, 5Gbit))
- Touch USB ports
- USB
- Additional Ports
- HDMI x2 (2.0, max. 3840×2160 @60Hz, YUV444, ARC on HDMI #1); DisplayPort x1 (1.2, max. 3840×2160 @60Hz); USB-C x2 (front: 1× 3.2 (Gen1, 5Gbit, 100W PD), side: 1× 2.0 (480 Mbps, 65W PD), 3840×2160 @60Hz (RGB444), DP 1.2 Alt mode, Data, Touch); HDMI x1 (2.0, max. 3840×2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display))
- Audio in
- Mini jack x1 (Microphone)
- Audio out
- S/PDIF (Optical) x1; Mini jack x1 (Headphone); Speakers 2 × 20W (Front facing + 20W Subwoofer on the backside)
- Ethernet
- x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
- Wi-Fi
- yes (WiFi-6, Bluetooth 5.0)
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS232 × 1
- Connectivity Options
- USB; RS-232c x1 (DSUB 9pin)
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20W (Front facing + 20W Subwoofer)
Physical & warranty
- Dimensions
- 1955.6 × 1154 × 87 mm
- Weight
- 63.8 kg
- Shipping Dimensions
- 2095 × 1265 × 185 mm
- Shipping Weight
- 76.5 kg
- VESA
- 800 × 600mm
- Mounting Orientation
- landscape
- Wall Mount
- 800 × 600 mm (VESA)
- Material
- metal
- Finishes
- black, matte
- Power Consumption
- 282W typical, 0.5W stand by, 0.3W off mode
- Power Standby
- 0.5 W
- Operating Temperature
- 0 °C - 40 °C
- Certifications
- CB, CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
- Warranty
- 5 Years
Other
- Package Contents
- power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Included Cables
- Power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Accessories
- Remote control, Touch pen × 4, Wall Mounting Bracket, Webcam Mounting Bracket, Quick start guide, Safety guide
- More Information
- https://iiyama.com/gb_en/products/prolite-te8613a-b1ag/
