65" · 4K UHD · Android 13
InFocus

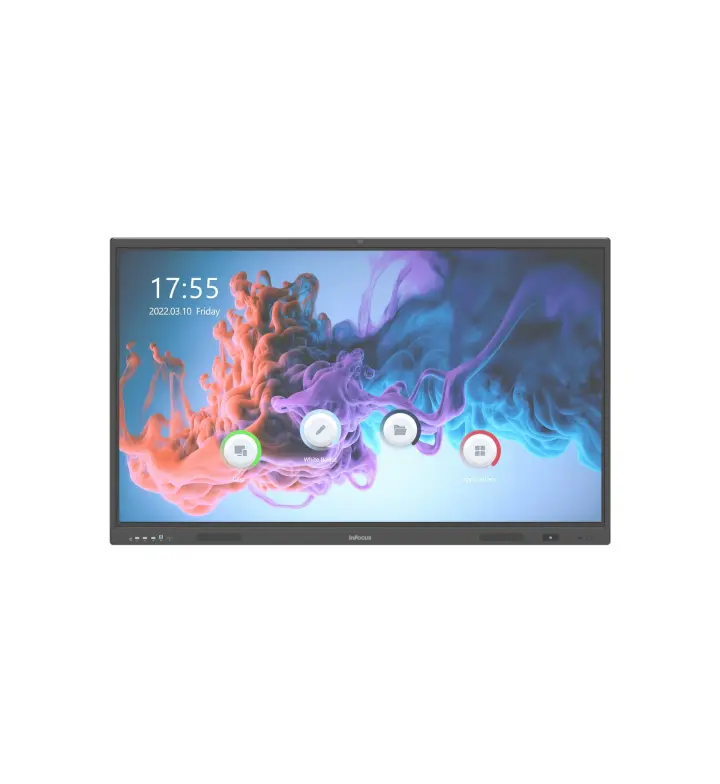

InFocus JTouch 13 86" 4K, 450 cd/m², RK3588, sensors
SKU IN8613
86-inch interactive display, 4K UHD, 450 cd/m², RK3588 processor, 40-point touch, environmental sensors.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- Infra-red
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32768 × 32768
Built-in system
- Operating System
- Android 13
- GPU
- Arm Mali-G610 MC4
- RAM
- 8 GB
- Storage
- 128 GB
Description
The InFocus JTouch Series 13 86" delivers professional-grade interactive display with advanced sensing capabilities. Powered by Rockchip RK3588 (4 × Cortex-A76 2.4GHz + 4 × Cortex-A55 1.8GHz) and ARM Mali-G610 MC4 GPU, supporting intensive collaborative applications. 4K UHD resolution with 450 cd/m² brightness and 10-bit color depth ensures vivid presentations with anti-glare smooth glass protection.
40-point infrared touch with ≤5 ms response and ±1mm accuracy enables precise writing and natural gesture control. Multi-sensor array including temperature, humidity, CO2 and PM2.5 provides environmental monitoring for facility management. Comprehensive connectivity: three HDMI 2.0, DisplayPort 1.2 IN, dual USB-C with 100W PD, dual Gigabit RJ45, Wi-Fi 6 and optional OPS slot. Built-in stereo speakers (16W × 2 front + 20W subwoofer) deliver integrated audio.
Ideal for: Large corporate training facilities, university auditoriums, government command centers and education settings requiring environmental awareness.
- Screen: 86", 4K UHD, 10-bit, 450 cd/m²
- Processor: RK3588 Octa-core A76/A55, Mali-G610 MC4, 8 GB RAM
- Storage: 128 GB internal, SD card expansion
- Touch: 40 points, Infrared, ≤5 ms, ±1mm
- Sensors: Temperature, Humidity, CO2, PM2.5
- Connectivity: HDMI ×3, DisplayPort 1.2, USB-C ×2, RJ45 ×2, Wi-Fi 6
- Audio: 16W × 2 + 20W subwoofer
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Surface Protection
- Anti-glare smooth glass
Touch
- Touch Technology
- Infra-red
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32768 × 32768
- Touch Response Time
- ≤ 5 ms
System
- Operating System
- Android 13
- Processor
- Rockchip RK3588, 4 × ARM Cortex-A76 2.4GHz + 4 × ARM Cortex-A55 1.8 GHz
- GPU
- Arm Mali-G610 MC4
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 4
- HDMI Output
- HDMI Out × 1
- DisplayPort
- DisplayPort In × 1
- USB-C input
- USB-C (USB 3.0, DP in, 65 W charging)
- USB Ports
- USB-A 3.0 × 4 ; USB-A 2.0 × 1
- Touch USB ports
- Touch USB 3.0 × 2
- Audio out
- Line out × 1, SPDIF out × 1
- Ethernet
- RJ45 (1000 Mbps Port) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS-232 × 1
- SD card slot
- microSD card slot × 1
Camera & audio
- Camera
- 48 MP
- Built In Microphone
- 8-mic array, 10 m pickup range
- Microphone Range
- 10 m
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 16 W front + 20 W subwoofer
Physical & warranty
- Dimensions
- 1963 × 92 × 1194 mm
- Weight
- 67.9 kg
- Shipping Dimensions
- 2160 × 230 × 1335 mm
- Shipping Weight
- 83.6 kg
- VESA
- 800 × 400 mm
- Wall Mount
- 800 × 400 mm (VESA)
- Power Consumption
- ≤ 400 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0°C to 40°C
- Operating Humidity
- 10% to 90% RH
- Certifications
- CB / CE / cTUVus / EMC / FCC / UKCA
Other
- Key Features
- Palm rejection, Pen and touch differentiation, Voice commands, NFC card reader, Sensors: Temperature, Humidity, CO2, PM2.5
- Package Contents
- 3m Touch USB-B Cable, 3m USB-A Cable, 3m Power Cable (US), 3m Power Cable (EU), 3m HDMI Cable, Remote, 2 × Stylus, NFC Comm Admin Card, 5 × NFC User Card, VESA Wall-mount, Simplified User Guide
- Included Cables
- 3m Touch USB-B Cable, 3m USB-A Cable, 3m Power Cable (US), 3m Power Cable (EU), 3m HDMI Cable
- Accessories
- Remote, 2 × Stylus, NFC Comm Admin Card, 5 × NFC User Card, VESA Wall-mount, Simplified User Guide
