65" · 4K UHD · Android 13
LG

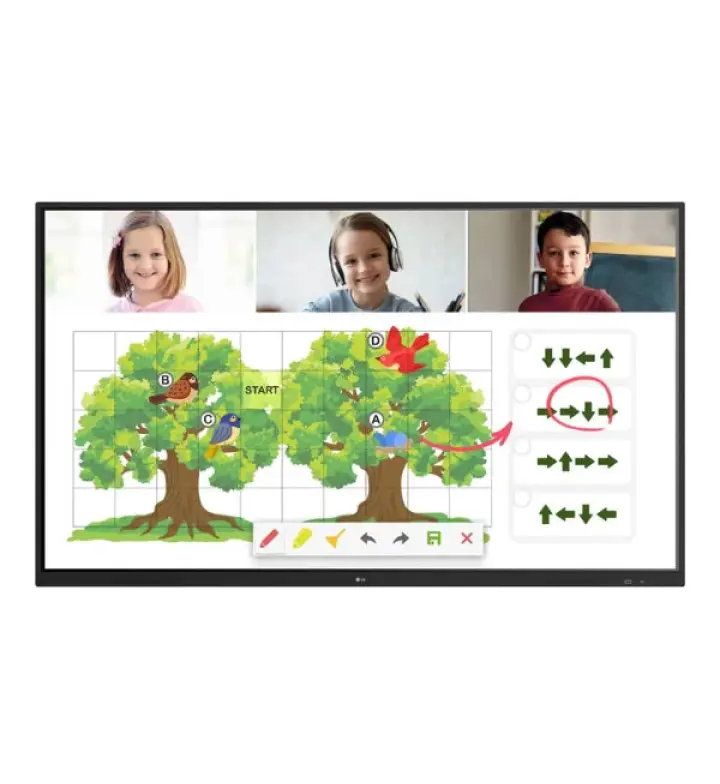

LG 86TR3PJ-B 86" UHD IR-Touch CreateBoard
MPN 86TR3PJ-B
SKU 86TR3PJ-B
86-inch 4K UHD interactive display with infrared touch, 20 simultaneous touch points, built-in OPS PC slot, Android.
- Screen size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Touch
- 20 points
- OPS slot
- Yes
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 1.07 billion colours
- Backlight
- Direct LED
Touch and writing
- Touch Technology
- IR
- Touch Points
- 20-point multi-touch
- Touch Accuracy
- ±1 mm
- Touch Response Time
- ≤ 10 ms
Built-in system
- Operating System
- Android 9.0
- Processor
- Quad-core A73
- GPU
- Arm Mali-G52 MC2
- RAM
- 4 GB
Description
The LG 86TR3PJ-B is a large-format interactive display measuring 86 inches with 4K UHD resolution (3840 × 2160 pixels). Built-in infrared touch technology supports up to 20 simultaneous touch points for large-group collaboration and interactive content delivery. The integrated OPS PC slot accepts LG computer modules, eliminating external media players and cable clutter.
Brightness reaches 450 nits maximum and 350 nits typical with protective glass. Connectivity includes three HDMI 2.1 inputs (HDCP 2.2/1.4), USB-C with DisplayPort Alt Mode for 4K video, five USB Type-A ports (four USB 3.0, one USB 2.0), two touch-dedicated USB ports, RS-232 serial control and dual Ethernet connections. Dual optical SPDIF audio output supports external sound systems. Built-in Android 9.0 enables standalone operation for signage and kiosk applications.
Ideal for: Large university lecture halls, corporate auditoriums, public sector training centres and government meeting spaces requiring robust interactive displays.
- Screen size: 86 inches
- Resolution: 3840 × 2160 (4K UHD)
- Touch technology: Infrared (IR), 20-point maximum
- Brightness: 450 nit max / 350 nit typical (with glass)
- HDMI inputs: 3 (HDCP 2.2/1.4)
- USB: Type A ×5 (USB 3.0 ×4, USB 2.0 ×1), USB-C ×1 with DP Alt Mode
- Touch USB ports: 2
- Audio: In ×1, Out ×1 (Optical SPDIF)
- Serial: RS-232C
- Ethernet: Dual connections (LAN In / Out)
- OPS PC Slot: Yes (built-in)
- Operating system: Android 9.0
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 1.07 billion colours
- Brightness
- 450 nit (Max.) / 350 nit (Typ.) w/ Glass; 490 nit (Max.) / 390 nit (Typ.) w/o Glass
- Backlight
- Direct LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Anti-glare, haze 28%
Touch
- Touch Technology
- IR
- Touch Points
- 20-point multi-touch
- Touch Accuracy
- ±1 mm
- Touch Response Time
- ≤ 10 ms
System
- Operating System
- Android 9.0
- Processor
- Quad-core A73
- GPU
- Arm Mali-G52 MC2
- RAM
- 4 GB
- Storage
- 32 GB
- OPS slot
- Yes (Built-in OPS Slot)
Connectivity
- HDMI Input
- 3 (HDCP 2.2/1.4)
- HDMI Output
- 1 (HDMI Out)
- USB-C input
- USB-C × 1
- USB Ports
- USB 3.0 Type A (4), USB 2.0 Type A (1), USB Type-C (1)
- Touch USB ports
- 2 (Touch USB)
- Audio in
- 1
- Audio out
- Audio out × 1
- Ethernet
- RJ45 (Gigabit) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS-232 × 1
- Connectivity Options
- HDMI, USB, Ethernet, Wi-Fi, Bluetooth
Camera & audio
- Speaker Type
- Built-in
- Speaker Output
- 2 × 16 W
Physical & warranty
- Dimensions
- 1957 × 1160 × 87 mm
- Weight
- 65.8 kg
- Shipping Dimensions
- 2110 × 1283 × 225 mm
- VESA
- 800 × 600 mm
- Power Consumption
- 450 W (max)
- Power Standby
- 0.5 W
- Operating Temperature
- 0°C to 40°C
- Operating Humidity
- 10% to 90% RH
Other
- Key Features
- Auto brightness sensor, Crestron Connected, Screen Share, HDMI-CEC, Smart energy saving, Wake on LAN
- Package Contents
- Power cord 3 m, USB cable (Type A-Type B) 5 m, HDMI cable 3 m, writing pen × 2, user manual, QSG, carton box, remote controller (2 batteries), Wi-Fi module
- Compatible Models
- Windows, macOS, Android
- More Information
-
Product: LG 86TR3PJ-B - Interactive Display
Manufacturer: LG
Model Number: 86TR3PJ-B
Screen Size: 86 inches
Resolution: 3840 x 2160 (UHD)
Touch Technology: Infrared (IR) Touch
Connectivity: HDMI, USB, DisplayPort, RJ45 (Ethernet)
Aspect Ratio: 16:9
Brightness: 400 nits
Touch Points: 10 simultaneous touch points
Compatibility: Windows, macOS, Android
Dimensions (W x H x D): 76.2 x 43.3 x 3.3 inches
Weight: 75 kg (165 lbs)
Mounting Type: Wall Mountable or Stand (Optional)
Power Consumption: 450W (Max)
Operating Temperature: 0°C to 40°C
Country of Origin: South Korea
