65" · 4K UHD · Android 13
MAXHUB

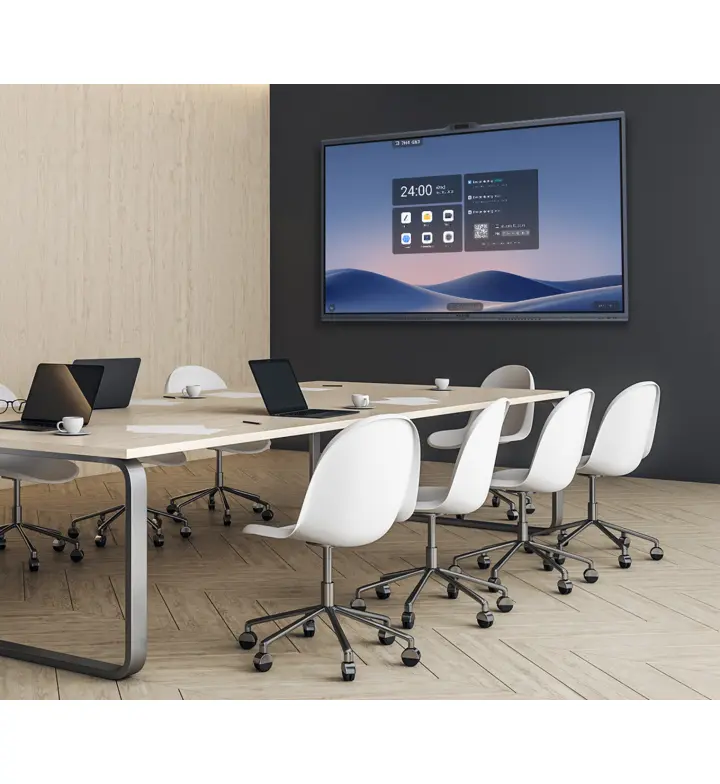

MAXHUB XBoard V7 86" 4K Interactive Display, 350 cd/m²
SKU V8650
86-inch 4K interactive flat panel with 50-point infrared touch, 350 cd/m² brightness, 16-mic array camera, built-in speakers, optional OPS PC slot.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 50 points
- OPS slot
- Optional
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 350 cd/m²
Touch and writing
- Touch Points
- 50 points
- Touch Technology
- Infrared
- Touch Accuracy
- ±0.5 mm
- Touch Response Time
- ≤2.5 ms
Built-in system
- OPS slot
- Optional
- Operating System
- MAXHUB OS 7.0 powered by Windows
Description
The MAXHUB XBoard V7 (model V8650) is an 86-inch 4K UHD interactive display with true 50-point multi-touch infrared technology and ±0.5 mm touch accuracy. The 3840×2160 panel runs at 60Hz native refresh with IPS backlight and anti-glare smooth glass surface, delivering 350 cd/m² brightness across a 178° viewing angle (H/V).
Built-in audio comprises a 16-microphone array with 180° pick-up range (0–15m for speech), dual 10W front channels plus 20W subwoofer, and line-level audio input and output. The 10-bit color depth captures professional-grade precision. An optional OPS PC slot allows direct integration of Windows or Android compute modules. Connectivity spans 2×HDMI In, 1×HDMI Out, 1×USB-C, 2×Gigabit Ethernet, 1×RS-232 serial, touch USB 2.0 port, and Wi-Fi 6 (2.4/5GHz). Bluetooth 5.2 links wireless input devices. No specifications for temperature or power consumption are documented in the supplied data.
Ideal for: Large-venue conferencing, corporate boardrooms, education auditoriums, and government command centers requiring collaborative multi-user touch interaction with integrated audio capture and modular compute flexibility.
- Screen Size: 86 inches, 4K UHD (3840×2160), 60Hz
- Touch: 50-point infrared, ±0.5mm accuracy
- Brightness: 350 cd/m²
- Viewing Angle: 178° (H) / 178° (V)
- Audio: 16-mic array (180°, 0–15m), 2×10W + 20W speakers, line audio in/out
- Connectivity: 2×HDMI In, 1×HDMI Out, 1×USB-C, 2×Gigabit Ethernet, RS-232, Wi-Fi 6, Bluetooth 5.2
- Display Color: 10-bit (professional-grade)
- Optional OPS PC slot for compute expansion
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 350 cd/m²
- Backlight
- IPS
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Anti-glare smooth glass
Touch
- Touch Technology
- Infrared
- Touch Points
- 50 Points Multi Touch
- Touch Accuracy
- ±0.5 mm
- Touch Response Time
- ≤2.5 ms
System
- Operating System
- MAXHUB OS 7.0 powered by Windows
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In × 2
- HDMI Output
- HDMI Out × 1
- USB-C input
- USB-C In × 1
- USB Ports
- USB 2.0 × 1, USB 3.0 × 2
- Touch USB ports
- Touch USB 2.0 × 1
- Audio in
- Audio in × 1
- Audio out
- Audio out × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5 GHz
- Bluetooth
- Bluetooth 5.2
- Serial Port
- RS-232 × 1
Camera & audio
- Camera
- 3 × 50 MP (Panorama + Telephoto + Telephoto)
- Built In Microphone
- 16-mic array, 15 m pickup range, 180° pickup
- Microphone Range
- 15 m
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 10 W + 20 W
Other
- Key Features
- Windows Ink, Direct annotation, Palm rejection, Sharp erase, Multi-input recognition, Auto framing, Speaker tracking, Intelligent audio fence
- Package Contents
- Pens, Stands, Modulars
- Accessories
- Pens, Stands, Modulars
