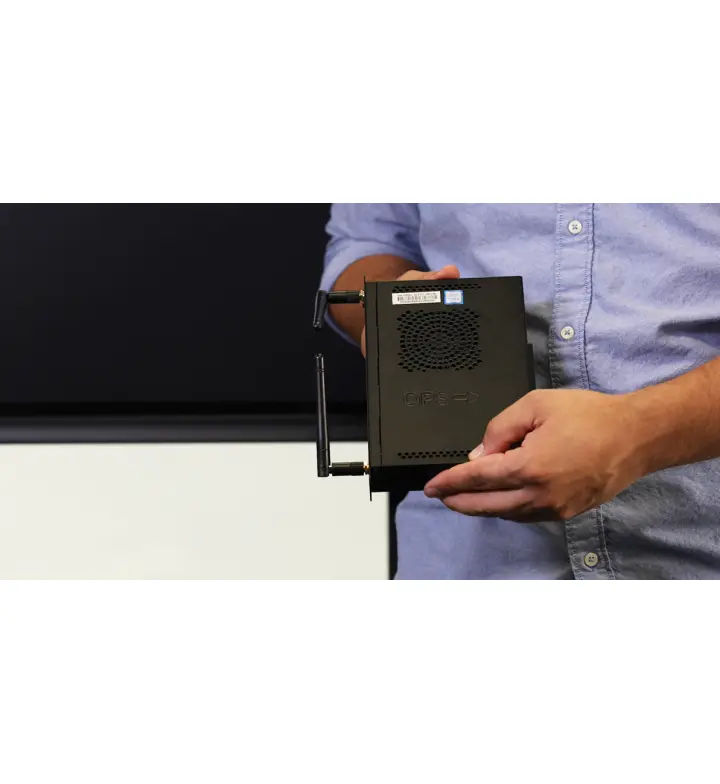

Newline WB7C120U 12th Gen Intel Core i7 OPS PC Module

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN WB7C120U SKU WB7C120U

Compact OPS PC module with 12th Gen Intel Core i7-1260P, 16GB RAM, 256GB SSD, and Windows 11 Pro for seamless touchscreen integration.

Processor: Intel Core i5-1240P
Storage: 256 GB SSD

Pricing

Price on request in OMR

Include in your quote

Installation Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Built-in system

GPU: Intel Iris Xe
Operating System: Windows 11 Pro licence, MS Office 2019 Pro
Processor: Intel Core i5-1240P
RAM: 16 GB (2 × 8 GB DDR4); expandable to 32 GB

Ports and connections

Wi-Fi: Wi-Fi 5/6/6E
HDMI Output: HDMI 1.4 Out (4K@30 Hz) × 1; HDMI 2.0 (4K@60 Hz) via JAE 80-pin
USB Ports: USB-A 3.0 × 2, USB-A 2.0 × 2, USB-C (Thunderbolt 4.0) × 2
Audio in: 3.5 mm Mic In × 1

Size and weight

Weight: 0.7 kg
Dimensions: 180 × 119 × 30 mm
Shipping Dimensions: 258 × 250 × 77 mm
Shipping Weight: 1 kg

Description

The Newline WB7C120U is an OPS (Open Pluggable Specification) compute module delivering fast processing power through a 12th Gen Intel Core i7-1260P processor. With 16GB of RAM and a 256GB SSD, this module handles multitasking, large document files, and classroom or conference applications without performance degradation. Windows 11 Pro operating system provides institutional security, update management, and broad software compatibility.

The module integrates directly into compatible interactive flat panels via the standard OPS slot, eliminating the need for separate computers, cable management, or additional desk space. Wi-Fi 6 and Bluetooth 5.2 enable fast wireless connectivity for presentations and collaborative tools. HDMI 2.0 video output supports 4K resolution at 60Hz, making this module suitable for high-resolution educational content, video conferencing, and detailed design work. The compact form factor fits behind flat-panel displays in classrooms, boardrooms, and training centers.

Ideal for: Educational institutions upgrading existing interactive displays with modern compute, corporate training environments, government facilities, and any deployment requiring an integrated touchscreen computer without additional hardware footprint.

Processor: 12th Gen Intel Core i7-1260P
Memory: 16GB RAM
Storage: 256GB SSD
Operating system: Windows 11 Pro
Wireless: Wi-Fi 6, Bluetooth 5.2
Video output: HDMI 2.0 (4K@60Hz)
Form factor: OPS (Open Pluggable Specification)

Specifications

Manufacturer specifications · confirmed on your quotation

System

Operating System: Windows 11 Pro licence, MS Office 2019 Pro
Processor: Intel Core i5-1240P
GPU: Intel Iris Xe
RAM: 16 GB (2 × 8 GB DDR4); expandable to 32 GB
Storage: 256 GB SSD

Connectivity

HDMI Output: HDMI 1.4 Out (4K@30 Hz) × 1; HDMI 2.0 (4K@60 Hz) via JAE 80-pin
USB Ports: USB-A 3.0 × 2, USB-A 2.0 × 2, USB-C (Thunderbolt 4.0) × 2
Audio in: 3.5 mm Mic In × 1
Audio out: 3.5 mm Line Out × 1
Ethernet: RJ45 10/100/1000 M × 1
Wi-Fi: Wi-Fi 5/6/6E
Bluetooth: Bluetooth 5.2

Physical & warranty

Dimensions: 180 × 119 × 30 mm
Weight: 0.7 kg
Shipping Dimensions: 258 × 250 × 77 mm
Shipping Weight: 1 kg
Operating Temperature: 0 °C – 45 °C
Operating Humidity: 5% – 95% (non-condensing)
Certifications: CE, RoHS, REACH; TPM 2.0 firmware

Other

Type: PC / Compute Module
Key Features: Intel Core i5-1240P, 8GB DDR4, 256GB SSD, Intel Iris Xe Graphics, Wi-Fi 6, Bluetooth 5.2, Windows 11 Pro, Mini PC chassis, Kensington lock slot, TPM 2.0, Thunderbolt 4, HDMI 2.0
Compatible Models: Newline displays (OPS slot); Intel Core i5-1240P, 8GB RAM, 256GB SSD, Windows 11 Pro, HDMI 2.0, Wi-Fi 6

Downloads

Specification Sheet PDF · English · 1.4 MB
