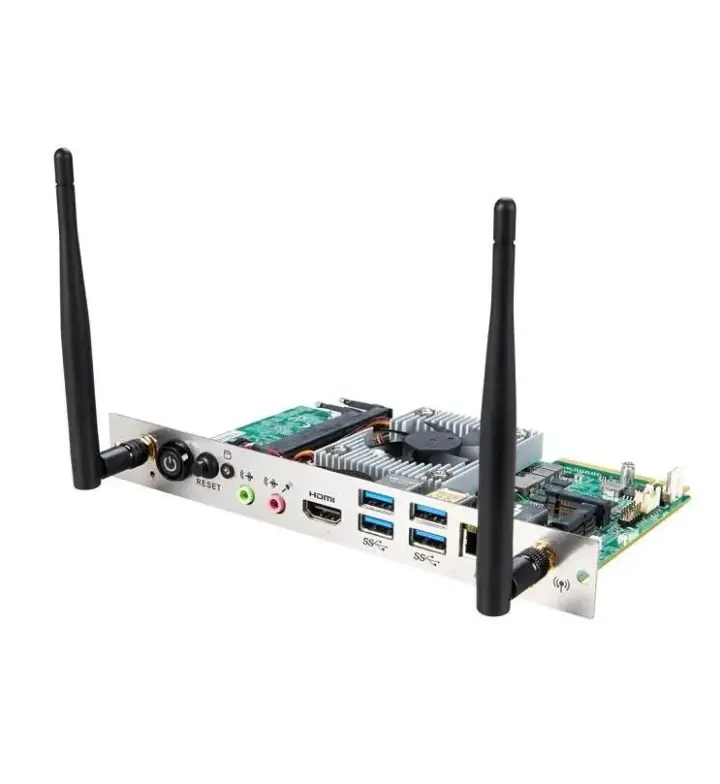

Newline WB5SXI20J, Intel Core i5 11th Gen, 16GB/256GB, Windows 10 Pro

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN WB5SXI20J SKU WB5SXI20J

Professional OPS compute module with Intel Core i5-1135G7, 16GB DDR4 RAM, 256GB SSD, and Iris Xe graphics for collaborative display environments.

Processor: Intel Core i5-1135G7
Storage: 256 GB SSD (M.2 2280)
Operating System: Windows 10 Pro

Pricing

Price on request in OMR

Include in your quote

Installation Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Ports and connections

Bluetooth: Bluetooth 5.0
HDMI Output: HDMI 2.0 Out × 1
USB Ports: USB-A 3.0 × 4, USB-C 3.1 × 2
Audio in: 3.5 mm Mic In × 1

Size and weight

Weight: 0.3 kg
Dimensions: 175 × 110 × 25 mm
Shipping Dimensions: 230 × 165 × 55 mm
Shipping Weight: 0.4 kg

Description

The Newline WB5SXI20J is a slot-in compute module delivering balanced performance for interactive display applications. Powered by an 11th-generation Intel Core i5-1135G7 processor with 16GB DDR4 RAM and 256GB SSD, it provides sufficient capability for videoconferencing, collaboration software, and content delivery without the power demands of higher-tier processors.

The module integrates directly into OPS slots without modification, measuring 175 × 110 × 25 mm. Networking capabilities include WiFi 6, Bluetooth 5.0, and Gigabit Ethernet (RJ45) for wired connectivity and remote management. Multiple USB ports (USB-A 3.0 and USB-C 3.1) and HDMI Out support external peripherals, video capture, and multi-display scenarios. Windows 10 Pro enables enterprise software compatibility and institutional support.

Ideal for: educational institutions, corporate training rooms, collaborative workspaces, and digital signage environments requiring Windows-based deployment with balanced performance and energy efficiency.

Intel Core i5-1135G7 processor with Intel Iris Xe Graphics
16GB DDR4 RAM, 256GB SSD storage
Windows 10 Pro operating system
WiFi 6, Bluetooth 5.0, Gigabit Ethernet
USB-A 3.0, USB-C 3.1, HDMI Out
Slot-in OPS module, 175 × 110 × 25 mm
Energy-efficient 11th-gen Intel architecture

Specifications

Manufacturer specifications · confirmed on your quotation

System

Operating System: Windows 10 Pro (licence included)
Processor: Intel Core i5-1135G7
GPU: Intel Iris Xe Graphics
RAM: 16 GB (2 × 8 GB DDR4 2133 MHz); max 32 GB
Storage: 256 GB SSD (M.2 2280)

Connectivity

HDMI Output: HDMI 2.0 Out × 1
USB Ports: USB-A 3.0 × 4, USB-C 3.1 × 2
Audio in: 3.5 mm Mic In × 1
Audio out: 3.5 mm Line Out × 1
Ethernet: Gigabit Ethernet (RJ45) × 1
Wi-Fi: Intel AX200, 802.11a/b/g/n/ac/ax, dual band (2.4 GHz and 5.0 GHz)
Bluetooth: Bluetooth 5.0

Physical & warranty

Dimensions: 175 × 110 × 25 mm
Weight: 0.3 kg
Shipping Dimensions: 230 × 165 × 55 mm
Shipping Weight: 0.4 kg
Power Consumption: 15 W (normal), 60 W (max)
Power Standby: 2 W
Operating Temperature: 0 °C – 60 °C
Operating Humidity: 10% – 95% (non-condensing)
Certifications: TPM 2.0; vPro supported (not included)

Other

Type: PC / Compute Module (SDM-L slot, Newline Flex)
Compatible Models: Newline Flex

Downloads

Specification Sheet PDF · English · 1.3 MB

Delivery & installation in Oman

Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.

Stock held in Muscat for fast-moving models — ask for current availability.

Questions about ordering

How do I get a price?

Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email sales@smartrooms.me with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.

Do you deliver across Oman, and how long does it take?

Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.

Do you install?

Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.

What warranty applies?

The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.

Do you support government tenders?

Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.

Can I get the quotation in Arabic?

Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
