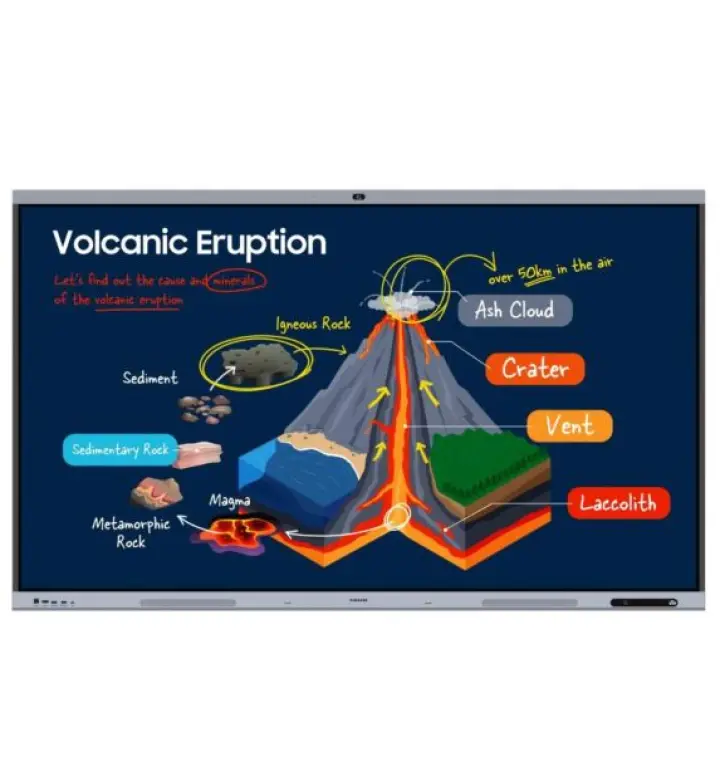

Samsung WA86FX-P 86" 4K 50-Touch Android 15
SKU WA86FX-P
86-inch 4K UHD interactive display with 50-point infrared touch, 400 cd/m² brightness, Android 15 OS, built-in camera. For boardrooms and collaborative spaces.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 15
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 nits
Touch and writing
- Touch Technology
- Infrared
- Touch Points
- 50-point multi-touch
- Touch Resolution
- 3840 × 2160
- Touch Response Time
- 8 ms
Built-in system
- Operating System
- Android 15
- RAM
- 16 GB
- Storage
- 128 GB
- OPS slot
- Yes (80-pin Intel OPS)
Description
The Samsung WA86FX-P is an 86-inch interactive flat panel with 4K UHD resolution and 400 cd/m² brightness. Running Android 15 with 16 GB RAM and 128 GB storage, the display features infrared touch technology with 50 simultaneous touch points and 8 ms response time. The built-in camera supports video conferencing and interactive applications.
Connectivity options include dual HDMI inputs and output, USB ports, Type-C with full functionality, RJ45 Ethernet, Bluetooth, and Wi-Fi 6 (2.4G/5G). The 2×10W front-facing stereo speakers deliver integrated audio. An OPS (Open Pluggable Specification) slot allows optional PC installation, enabling standalone or hybrid operation. The anti-glare coating with 25% haze and 178° viewing angle ensure visibility from multiple positions.
Ideal for: Corporate meeting rooms, training facilities, digital signage applications, and educational environments requiring integrated camera support for remote collaboration.
- 86-inch 4K UHD interactive display with built-in camera
- 400 cd/m² brightness, anti-glare coating, 178° viewing angle
- 50-point infrared multi-touch, 8 ms response time
- Android 15, 16GB RAM, 128GB storage; OPS slot for optional PC
- Dual HDMI in/out, USB ports, Type-C, RJ45 Ethernet, Wi-Fi 6, Bluetooth
- 2×10W integrated stereo speakers; eco sensor for power management
- VESA 600×400mm mount; supports conferencing and interactive content
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 nits
- Backlight
- Direct LED backlight
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H/V) wide viewing angle
- Surface Protection
- Anti-glare / anti-reflection coating; haze around 25%
Touch
- Touch Technology
- Infrared
- Touch Points
- 50-point multi-touch
- Touch Resolution
- 3840 × 2160
- Touch Response Time
- 8 ms
System
- Operating System
- Android 15
- RAM
- 16 GB
- Storage
- 128 GB
- OPS slot
- Yes (80-pin Intel OPS)
Connectivity
- HDMI Input
- HDMI In × 2
- HDMI Output
- Yes
- DisplayPort
- DisplayPort 1.2 × 1
- USB-C input
- Yes
- USB Ports
- USB × 4
- Audio in
- Audio in
- Audio out
- Audio out
- Ethernet
- RJ45 × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Yes
- Serial Port
- RS-232 × 1
Camera & audio
- Camera
- 48 MP, with auto framing to keep speaker in view
- Speaker Type
- Built-in, front-facing stereo speakers
- Speaker Output
- 2 × 10W built-in stereo speakers (20W total)
Physical & warranty
- Dimensions
- 1950.4 × 1174.0 × 87.1 mm
- Weight
- 60.9 kg
- Shipping Dimensions
- 2095 × 1265 × 185 mm
- Shipping Weight
- 71.8 kg
- VESA
- 800 × 600 mm
- Wall Mount
- VESA mounting supported; mounting pattern ~ 600 × 400-mm for the 86-inch size
- Power Consumption
- On mode: approx 493-529 W depending on region / variant; standby/sleep ~ 0.5 W
- Operating Temperature
- 0°C to 40°C
- Operating Humidity
- 10% to 80% RH
- Warranty
- Yes
Other
- Key Features
- Voice commands (mics and conferencing features, voice capture is supported), Dual Pen support (front/back nib) allowing use of two different pens/tools without switching settings, Implied, Sensors: Eco
- Package Contents
- Standard HDMI/USB cables likely included, OPS slot optionally used
- Included Cables
- Standard HDMI/USB cables likely included; OPS slot optionally used
