SMART

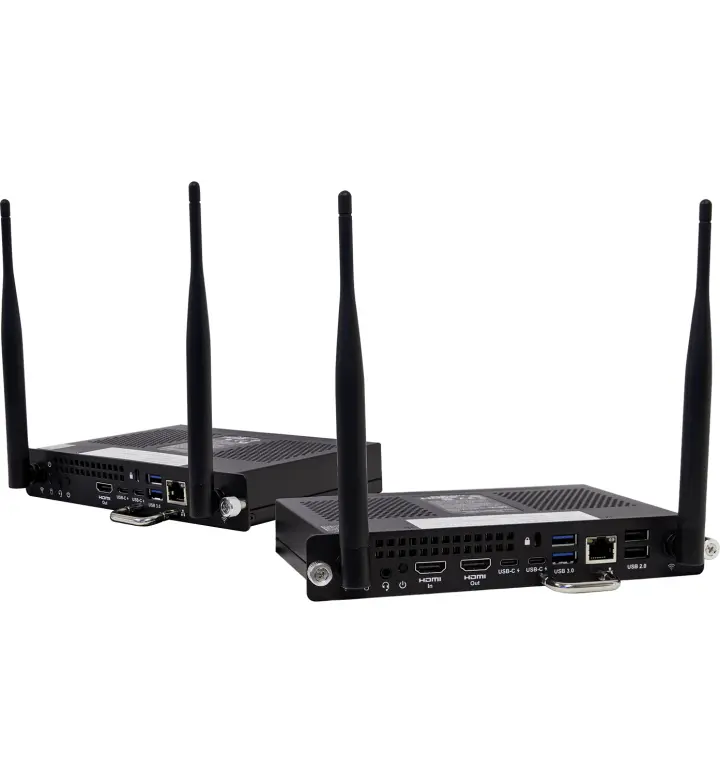

SMART PCM13 Series OPS Module (13th Gen Core, 4K UHD, Wi-Fi 6e)

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN PCM13 series SKU PCM13 series

13th Generation Intel Core OPS module with Windows 11 Pro, 4K UHD video, Wi-Fi 6e, Bluetooth 5.3 and customizable RAM and SSD.

Resolution: 4K UHD at 60 Hz
Storage: 256 GB M.2 NVMe SSD
Operating System: Windows 11 Pro

Pricing

Price on request in OMR

Include in your quote

Installation Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Ports and connections

Bluetooth: Bluetooth 5.3
HDMI Input: HDMI In (HDMI 1.4) × 1 (PCM13-i7v only)
HDMI Output: HDMI Out (HDMI 2.0) × 1
USB-C input: Type-C × 2 (up to 15 W power delivery)

Size, weight and power

Weight: 750 g
Dimensions: 20 cm × 14 cm × 3 cm
Shipping Dimensions: 270 × 220 × 70 mm
Power Consumption: 76 W max (PCM13-i5) / 77 W max (PCM13-i7v)

Description

The SMART PCM13 Series is a slot-in OPS module powered by 13th Generation Intel Core processors running Windows 11 Pro. The module delivers 4K UHD video output with Wi-Fi 6e and Bluetooth 5.3 for wireless connectivity, TPM 2.0 for security, and Gigabit Ethernet for network access.

The compact module (20 cm × 14 cm × 3 cm, 750 g) supports customizable RAM and SSD configurations to match specific deployment needs. Multiple USB and HDMI ports enable flexible integration with interactive displays, peripherals and external storage. The form factor fits standard OPS slots in SMART and compatible interactive flat panels.

Ideal for: Educational institutions and corporate environments requiring high-definition video output, fast wireless connectivity and secure multi-user classroom or meeting room deployments.

13th Gen Intel Core processor
Windows 11 Pro operating system
4K UHD video capability
Wi-Fi 6e and Bluetooth 5.3
TPM 2.0 security chip
Customizable RAM and SSD options

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Resolution: 4K UHD at 60 Hz

System

Operating System: Windows 11 Pro (full license)
Processor: Intel Core i5-13420H (PCM13-i5) / Intel Core i7-1365U vPro (PCM13-i7v)
GPU: Intel UHD Graphics (i5) / Intel Iris Xe Graphics (i7v)
RAM: 8 GB DDR4 (PCM13-i5) / 16 GB (2 × 8 GB) DDR4 (PCM13-i7v)
Storage: 256 GB M.2 NVMe SSD

Connectivity

HDMI Input: HDMI In (HDMI 1.4) × 1 (PCM13-i7v only)
HDMI Output: HDMI Out (HDMI 2.0) × 1
USB-C input: Type-C × 2 (up to 15 W power delivery)
USB Ports: USB 3.2 Gen 1 Type-A × 2, USB 2.0 Type-A × 2, USB Type-C × 2 (up to 15 W)
Audio out: 3.5 mm Stereo × 1
Ethernet: Gigabit Ethernet (RJ45) × 1
Wi-Fi: Wi-Fi 6E (802.11ax, 2.4/5/6 GHz)
Bluetooth: Bluetooth 5.3

Physical & warranty

Dimensions: 20 cm × 14 cm × 3 cm
Weight: 750 g
Shipping Dimensions: 270 × 220 × 70 mm
Power Consumption: 76 W max (PCM13-i5) / 77 W max (PCM13-i7v)
Power Standby: < 0.5 W
Operating Temperature: 0 °C - 40 °C
Operating Humidity: 10% - 90% RH, non-condensing
Certifications: UL Recognized, FCC, ISED, CE, UKCA, RCM, RSM, WHQL

Other

Type: OPS PC module (PCM13-i5 / PCM13-i7v)
Additional Features: TPM 2.0

Downloads

Specification Sheet PDF · English · 688 KB

Delivery & installation in Oman

Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.

Stock held in Muscat for fast-moving models — ask for current availability.

Questions about ordering

How do I get a price?

Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email sales@smartrooms.me with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.

Do you deliver across Oman, and how long does it take?

Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.

Do you install?

Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.

What warranty applies?

The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.

Do you support government tenders?

Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.

Can I get the quotation in Arabic?

Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
