Yealink CM20 AI Beamforming Ceiling Microphone, 16 Mics, PoE
SKU CM20
PoE ceiling microphone with 16 omnidirectional mics, 8 pickup zones and a built-in DSP for Yealink MVC rooms; Certified for Microsoft Teams.
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Ports and connections
- Ethernet
- 1 × RJ-45
Size and weight
- Weight
- 615 g
- Dimensions
- Ø223 × 83 mm (with mesh cover); Ø215 × 81 mm (without mesh cover)
- Shipping Dimensions
- 398 × 310 × 135 mm (box)
- Shipping Weight
- 2.462 kg net / 3.078 kg gross per carton
Description

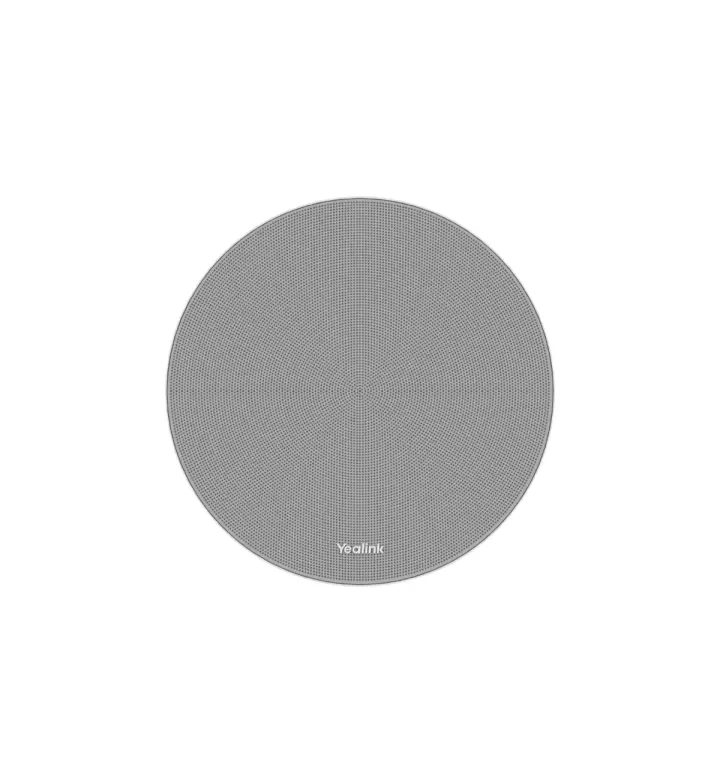

The Yealink CM20 is a round beamforming ceiling microphone with 16 omnidirectional microphones and 8 independent pickup zones. It delivers 30 m² of premium full-duplex capture (STIPA 0.78 at a 3.2 m pickup radius) and up to 60 m² of effective coverage (STIPA 0.72 at 4.5 m), measured at a 2.8 m mounting height in a room with an RT60 of 408 ms and 40 dBA background noise.
An integrated DSP makes the CM20 plug-and-play with Yealink MVC systems, so no external audio processor is needed. AI dynamic noise reduction, AI reverberation suppression and echo cancellation clean up speech, and 8 beam outputs give room cameras a reference for speaker tracking. It supports AES67 and runs from one PoE (IEEE 802.3af, Class 3) cable carrying power and audio, drawing 5.7 W typical. A removable magnetic mesh cover is supplied in white and black.
Ideal for: medium, large and divisible meeting rooms in Oman built around Yealink MVC S98, S90, S80 or S50 systems. The CM20 is Certified for Microsoft Teams and plenum rated to UL 2043.
- Microphones: 16 omnidirectional, 8 pickup zones
- Frequency response: 120 Hz – 16 kHz; SNR 86 dB; max SPL 122 dB SPL
- Interface: 1 × RJ-45, PoE (IEEE 802.3af, Class 3)
- Power: 5.7 W typical, 9 W rated
- Size: Ø223 × 83 mm with mesh cover; weight 615 g
- Mounting: in-ceiling, pendant or on-ceiling
- Operating temperature: 0 °C – 50 °C
Specifications
Manufacturer specifications · confirmed on your quotation
System
- AI features
- AI dynamic noise reduction, AI reverberation suppression, echo cancellation; speaker tracking with room cameras
Connectivity
- Ethernet
- 1 × RJ-45
Camera & audio
- Built In Microphone
- 16 omnidirectional microphones, 360° pickup; 8 independent pickup zones; 8 beam outputs; 1 internal AEC channel
- Microphone Range
- 30 m² premium full-duplex capture (STIPA 0.78 at 3.2 m pickup radius); up to 60 m² effective coverage (STIPA 0.72 at 4.5 m); measured at RT60 408 ms @ 1 kHz, 40 dBA noise, 2.8 m height
- Microsoft Teams ready
- Yes (Certified for Microsoft Teams)
Physical & warranty
- Dimensions
- Ø223 × 83 mm (with mesh cover); Ø215 × 81 mm (without mesh cover)
- Weight
- 615 g
- Shipping Dimensions
- 398 × 310 × 135 mm (box)
- Shipping Weight
- 2.462 kg net / 3.078 kg gross per carton
- Mounting Option
- In-ceiling, pendant or on-ceiling
- Colour
- Pearl Light Gray; white and black mesh covers
- Material
- ABS + PC and iron mesh
- Power Consumption
- PoE (IEEE 802.3af, Class 3); 5.7 W typical, 9 W rated
- Operating Temperature
- 0 °C – 50 °C
- Operating Humidity
- 5% – 90%
- Certifications
- Certified for Microsoft Teams; plenum rated UL 2043 (air-handling spaces)
Other
- Type
- AI beamforming ceiling microphone with integrated DSP
- Additional Features
- Integrated DSP (plug-and-play with Yealink MVC systems, no external audio processor); AES67 support; removable magnetic mesh cover
- Package Contents
- CM20 microphone, white & black mesh cover, Quick Start Guide, assembly fixing bracket, dust cover, length-adjustable pole (optional), bracing bridge × 1 pair, suspend pole adapter (optional), expansion bolt × 6 (φ6 × 30 mm), self-tapping screw × 6 (T4 × 30 mm), machine screw × 5, bracing bridge screw × 20 (M3 × 6)
- Compatible Models
- Yealink MVC systems (MVC S98, S90, S80, S50 shown on the product page)
- More Information
- Frequency response 120 Hz – 16 kHz; max SPL 122 dB SPL; SNR 86 dB (< 1% THD); sensitivity 0 dBV/Pa (94 dB SPL @ 1 kHz)
