65" · 4K UHD · Android 13
Yealink

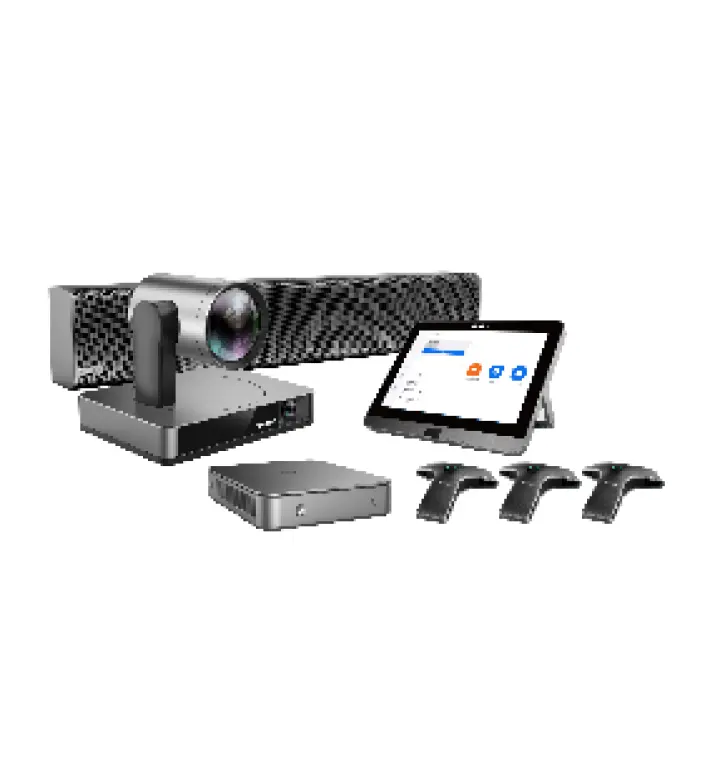

Yealink ZVC860 Zoom Rooms System, Dual-Eye 4K PTZ, 12× Optical Zoom
SKU ZVC860
Complete Zoom Rooms system with dual-eye 4K camera, 12× optical zoom, advanced AI tracking (speaker, presenter, multi-focus), gesture control and wireless microphone support.
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Built-in system
- Storage
- 128 GB SSD
- Processor
- 11th Gen Intel Core i5 (MCore Pro mini-PC)
- RAM
- 8 GB (2 × 4 GB)
Camera and audio
- Built In Microphone
- Built-in
- Camera
- 120°, 110°, 78° (Panoramic lens); 90°, 81°, 50° (Telephoto lens)
- Microphone Range
- 6 m
- Speaker Output
- 8 W (optional MSpeaker II)
Ports and connections
- Bluetooth
- Bluetooth 5.2
- HDMI Output
- HDMI Out × 3 (CEC) on MCore Pro
- USB Ports
- USB 3.0 Type-A × 4 (MCore Pro)
- Ethernet
- 10/100/1000M Ethernet × 1 (MCore Pro)
Description
The Yealink ZVC860 is a second-generation Zoom Rooms system combining a dual-eye 4K camera with panoramic and telephoto lens options. Optical zoom extends to 12× with digital zoom of 1.7×; panoramic field of view reaches 120° and telephoto 90°. Advanced AI features include auto framing, speaker tracking, presenter tracking, gesture control, area trigger detection, multi-focus and picture-in-picture simultaneously.
The system supports a 6-metre microphone range and integrates with Yealink wireless microphones (VCM34, VCM38) in cascaded arrays of up to four units. Optional third-party audio devices from Biamp, Nureva, Shure and YAMAHA are supported. The MCore mini-PC, MTouch II control panel, and optional MSpeaker II soundbar (8W output) provide complete control and audio. Desktop, wall-mounted or ceiling deployment is possible. Includes third-party screen sharing and Yealink Device Management Platform for centralized administration.
Ideal for: Large conference rooms, boardrooms, auditoriums and distributed enterprises requiring PTZ camera control, multi-focus tracking and wireless microphone flexibility.
- Camera: dual-eye 4K UHD with panoramic (120°) and telephoto (90°) lenses
- Zoom: 12× optical, 1.7× digital; auto framing and speaker/presenter tracking
- AI features: gesture control, area trigger, multi-focus, picture-in-picture
- Audio: 6m microphone range; supports VCM34/VCM38/CPW90 wireless and third-party devices
- Control: MTouch II panel; supports desktop, wall-mount or ceiling deployment
- Zoom Rooms certified; includes MCore mini-PC and optional MSpeaker II (8W)
- Connectivity: USB, Bluetooth, Wi-Fi, HDMI, Ethernet, Line-in, Line-out
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Operating System
- Windows 10 IoT Enterprise x64 (Windows 11 IoT Enterprise supported from 23H2)
- Processor
- 11th Gen Intel Core i5 (MCore Pro mini-PC)
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
- AI features
- Auto framing, speaker tracking, presenter tracking (area trigger, gesture control), multi-focus, picture-in-picture
Connectivity
- HDMI Output
- HDMI Out × 3 (CEC) on MCore Pro
- USB Ports
- USB 3.0 Type-A × 4 (MCore Pro)
- Ethernet
- 10/100/1000M Ethernet × 1 (MCore Pro)
- Wi-Fi
- Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- Bluetooth
- Bluetooth 5.2
- Connectivity Options
- USB, Bluetooth, Wi-Fi, HDMI, Ethernet, Line-in, Line-out
Camera & audio
- Camera
- 120°, 110°, 78° (Panoramic lens); 90°, 81°, 50° (Telephoto lens)
- Field Of View
- Telephoto 90° (D) / 81° (H) / 50° (V); Panoramic 120° (D) / 110° (H) / 78° (V)
- Zoom Type
- 20.4× HD zoom (12× optical, 1.7× digital), mechanical PTZ (pan 200°, tilt 130°)
- Built In Microphone
- Built-in
- Microphone Range
- 6 m
- Speaker Output
- 8 W (optional MSpeaker II)
- Zoom ready
- Yes (Zoom Rooms)
Physical & warranty
- Weight
- 6.88 kg (net), 7.54 kg (gross)
- Shipping Dimensions
- 600 × 545 × 285 mm
- Shipping Weight
- 7.54 kg
- Mounting Type
- Desktop placement, desktop fixed, wall-mounted deployment, ceiling deployment
- Rotation
- 200° (pan) / 130° (tilt)
- Operating Temperature
- 0 to 40 °C
- Operating Humidity
- 10% to 95% RH
Other
- Type
- Complete VC Solution
- Key Features
- Auto framing, speaker tracking, presenter tracking, gesture control, area trigger, multi-focus, picture-in-picture, multi-panel control, third-party screen sharing support, Yealink Device Management Platform, cable management, wireless BYOD, up to 9 camera preset positions, supports third-party audio devices (Biamp, Nureva, Shure, YAMAHA)
- Additional Features
- TPM 2.0, Kernel DMA, EDID, integrated cable management (MCore Pro)
- Package Contents
- UVC86 dual-eye tracking 4K camera, MCore mini-PC, MTouch II touch panel, Optional VCM34, VCM38, CPW90 microphones, MSpeaker II soundbar
- More Information
- MTouch Plus: 11.6" IPS 1920 × 1080, screen angle 30°–70°, HDMI/USB-C input, wired/wireless (WPP30) sharing, desktop or wall mount; RoomSensor: 120° detection, battery (4-year life)
