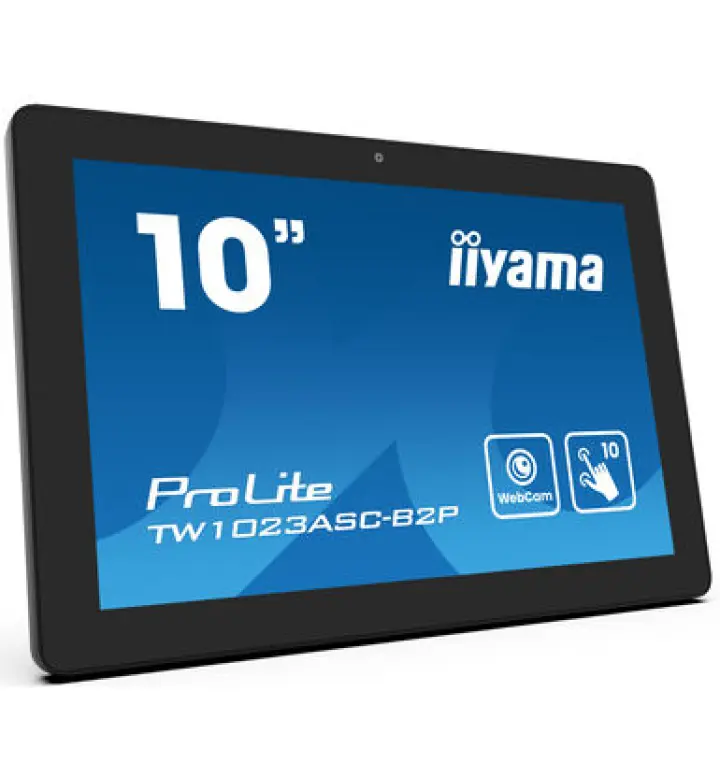

IIYAMA ProLite TW1023ASC-B2P 10.1" HD PoE Android Touchscreen (387 cd/m²)

iiyama

IIYAMA ProLite TW1023ASC-B2P 10.1" HD PoE Android Touchscreen (387 cd/m²)

MPN TW1023ASC-B2P SKU TW1023ASC-B2P

10.1-inch HD interactive touchscreen with 10-point PCAP touch, Android 13, Rockchip RK3568, 4GB RAM, 32GB storage, Power over Ethernet, 5MP webcam, 387 cd/m².

Screen size
10.1"
Resolution
HD
Touch
10 points
System
Android 13

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size
10.1", 25.5cm
Resolution
1280 × 800 (1 megapixel HD)
Display Color
16.7mln 8bit
Brightness
450 cd/m²

Built-in system

Operating System
Android 13.0
Processor
Rockchip RK3568 Quad-core A55 × 4
GPU
G52 MP2
RAM
4 GB

Camera and audio

Camera
1
Built In Camera
Webcam (5 megapixel)
Speaker Type
Built-in Speakers
Speaker Output
Speakers 2 × 1.5W

Description

The IIYAMA ProLite TW1023ASC-B2P is a 10.1-inch HD interactive touchscreen powered by Android 13 and Rockchip RK3568 quad-core processor. It connects via single Gigabit Ethernet cable (IEEE 802.3 at, max 30W PoE), eliminating separate power supplies in point-of-sale, kiosk and fixed-installation environments. 10-point projective capacitive touch with anti-fingerprint coating supports multi-user tap and drag on 6H-hardness glass (1.25mm thickness).

Built-in 5-megapixel webcam enables video capture for documentation, security and telemedicine. 387 cd/m² brightness maintains visibility in retail and outdoor-facing locations. Four USB 2.0 ports and SD card slot expand connectivity to barcode scanners, receipt printers and external sensors. Mini HDMI output (1280×720 @60Hz) feeds external signage displays if needed. Lightweight 0.8 kg form factor mounts on wall or countertop via 75×75 VESA bracket; runs continuously on PoE power budget.

Ideal for: Retail checkout counters, restaurant kiosks, clinic patient intake, hospitality check-in, government service windows and unattended information displays across Oman where single-cable installation and always-on reliability are critical.

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size
10.1", 25.5cm
Resolution
1280 × 800 (1 megapixel HD)
Display Color
16.7mln 8bit
Brightness
450 cd/m²
Backlight
IPS
Viewing Angle
horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Surface Protection
anti-fingerprint coating, glass thickness 1.25mm, glass hardness 6H

Touch

Touch Technology
Projected Capacitive Touch
Touch Points
10 (HID, only with supported OS)

System

Operating System
Android 13.0
Processor
Rockchip RK3568 Quad-core A55 × 4
GPU
G52 MP2
RAM
4 GB
Storage
32 GB

Connectivity

HDMI Output
HDMI Out × 1
USB Ports
x4 (1 × 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 × 2.0 (DC5V, 500mA), 1 x MICRO with OTG)
Additional Ports
HDMI x1 (mini HDMI, 1280×720 @60Hz)
Audio in
Mini jack x1
Audio out
Speakers 2 × 1.5W
Ethernet
x1 (PoE - IEEE802.3 at/Max. 30W)
Wi-Fi
Wi-Fi IEEE802.11a/b/g/n/ac
Bluetooth
Bluetooth 5.2
SD card slot
SD Card Slot × 1
Connectivity Options
USB

Camera & audio

Camera
1
Built In Camera
Webcam (5 megapixel)
Speaker Type
Built-in Speakers
Speaker Output
Speakers 2 × 1.5W

Physical & warranty

Dimensions
255 × 172 × 30.5 mm
Weight
0.8 kg
Shipping Dimensions
398 × 223 × 68 mm
Shipping Weight
1.36 kg
VESA
75 × 75mm
Mounting Orientation
landscape, portrait, face-up
Wall Mount
75 × 75 mm (VESA)
Colour
black, matte
Power Consumption
18W typical, 0.5W stand by
Power Standby
0.5 W
Certifications
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Other

Included Cables
AC adapter, interchangeable plugs (EU/UK)
Accessories
quick start guide, safety guide, AC adapter, cable cover
