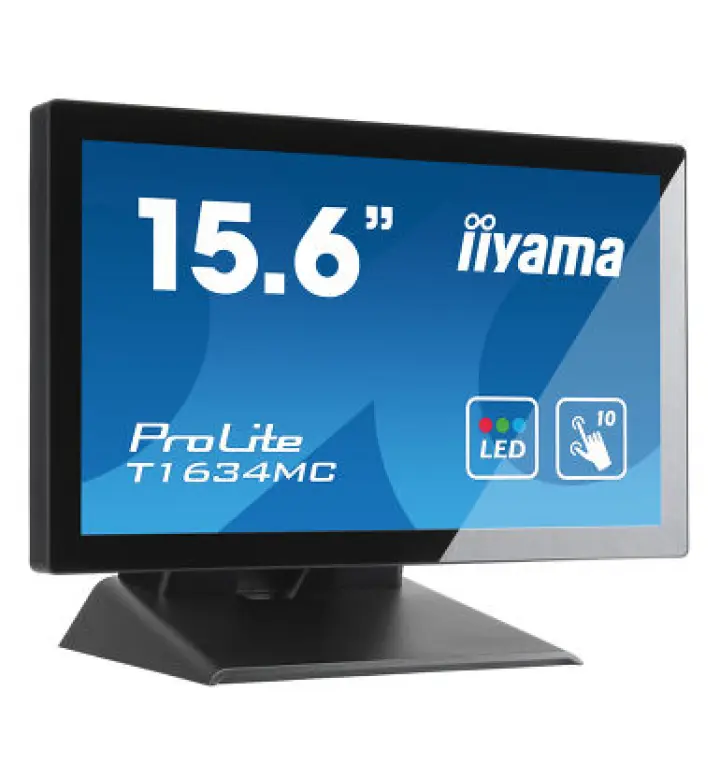

IIYAMA ProLite T1634MC 15.6" Capacitive Touch Monitor

iiyama

IIYAMA ProLite T1634MC 15.6" Capacitive Touch Monitor

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN T1634MC-B5X SKU T1634MC-B5X

Compact 15.6-inch projective capacitive touchscreen with 1366×768 resolution, 360 cd/m² brightness, 10-point multi-touch and edge-to-edge glass for kiosks and interactive point-of-sale.

Screen size: 15.6"
Resolution: 1366 × 768
Touch: 10 points

Pricing

Price on request in OMR

Include in your quote

Installation Mounting / trolley Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size: 15.6 inch
Resolution: 1366 × 768
Display Color: 16.7mln
Brightness: 360 cd/m²

Touch and writing

Touch Points: 10 points
Touch Technology: Projected Capacitive Touch
Touch Response Time: 8ms (GTG)

Ports and connections

HDMI Input: HDMI × 1
DisplayPort: DisplayPort Input × 1
VGA input: VGA × 1
Touch USB ports: USB

Description

The IIYAMA ProLite T1634MC is a 15.6-inch touchscreen designed for interactive kiosks, point-of-sale systems and digital signage across Oman. Projective capacitive technology with 10-point multi-touch enables responsive, glove-friendly interaction without calibration drift. At 360 cd/m², the display delivers excellent brightness for retail environments and high-traffic areas.

The edge-to-edge glass design minimizes visual distractions and simplifies maintenance, while 1366×768 resolution provides pixel density suitable for text and graphics at close viewing distances. Power consumption is minimal—16W typical, 2W standby—reducing thermal load and operational costs. The monitor supports VGA, HDMI and DisplayPort inputs, accommodating both legacy and modern video sources. Viewing angles of 170° horizontal and 160° vertical ensure consistent image quality across work stations.

Ideal for: Retail kiosks, customer inquiry desks, airport and hotel check-in terminals, healthcare registration points and government service counters requiring reliable capacitive touch responsiveness in public-facing environments.

Screen: 15.6 inches, 1366×768 resolution (1.0 megapixel), TN LED backlight
Touch: 10-point projective capacitive, 8ms response time (GTG)
Brightness: 360 cd/m², 16.7 million colours
Connectivity: VGA, HDMI, DisplayPort, USB, 100×100mm VESA
Power: 16W typical, 2W standby, 2W off mode
Viewing angles: 170° horizontal, 160° vertical

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size: 15.6 inch
Resolution: 1366 × 768
Display Color: 16.7mln
Brightness: 360 cd/m²
Backlight: TN LED
Viewing Angle: horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Touch

Touch Technology: Projected Capacitive Touch
Touch Points: 10 Points Multi Touch
Touch Response Time: 8ms (GTG)

Connectivity

HDMI Input: HDMI × 1
DisplayPort: DisplayPort Input × 1
VGA input: VGA × 1
Touch USB ports: USB

Physical & warranty

Dimensions: 381 × 285.5 × 202 mm
Weight: 4.4 kg
Wall Mount: 100 × 100 mm (VESA)
Power Consumption: 16 W
Power Standby: 2 W

Other

Model: ProLite T1634MC-B5X
Included Cables: power, USB, HDMI, DP
Accessories: quick start guide, safety guide, AC adapter, Touch Panel Driver Disk (CD-ROM), cable cover
More Information: https://iiyama.com/ie_en/products/prolite-t1634mc-b5x/
