Iiyama ProLite TE10518UWI-B1AG 105" 5K Ultrawide Interactive Display, 32-Point Writing

iiyama

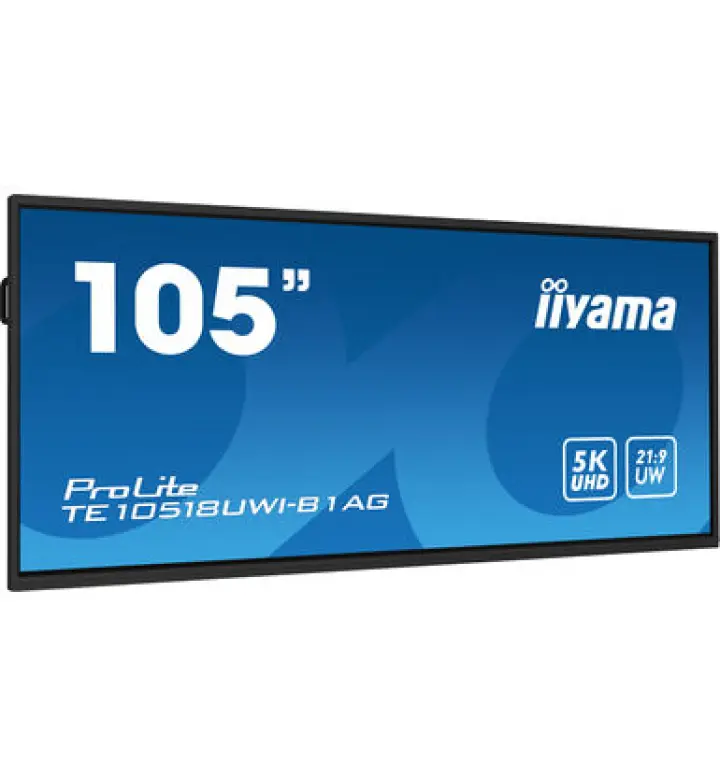

Iiyama ProLite TE10518UWI-B1AG 105" 5K Ultrawide Interactive Display, 32-Point Writing

MPN TE10518UWI-B1AG SKU TE10518UWI-B1AG

105-inch ultrawide 5K UHD (5120×2160) interactive display with iiWare 11 (Android 13), 8GB RAM, 40-point touch with 32-point writing support, and Wi-Fi 6.

Screen size
105"
Resolution
5K (5120 × 2160)
Touch
40 points
System
Android 13

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size
105 inch
Resolution
5120 × 2160 (14.75 megapixel, 5K UHD)
Display Color
1.07B 10bit (NTSC 90%)
Brightness
450 cd/m²

Touch and writing

Touch Technology
PureTouch-IR
Touch Points
40, 32pt writing (HID, only with supported OS)
Touch Accuracy
± 1 mm

Built-in system

Operating System
Android 13.0
Processor
CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB
GPU
Mali G610
RAM
8 GB

Description

The Iiyama ProLite TE10518UWI-B1AG is a 105-inch ultrawide 5K UHD (5120×2160) interactive display running iiWare 11 with Android 13 OS, 8GB RAM, and 64GB storage. Supporting 40-point infrared touch with 32-point HID writing on supported operating systems, ±1mm accuracy, and palm rejection, the display enables natural pen-and-touch collaboration across the expanded panoramic screen real estate.

Built-in features include zero air-gap 3mm AG-coated glass (7H hardness), 450 cd/m² peak brightness, integrated 8-array microphone with 8-metre voice pick-up, dual USB-C ports with 100W (front) and 15W (rear) power delivery, Gigabit Ethernet with auto-switching for PC and Android environments. The Octa-Core A311D2 CPU with A76×4 + A55×4 (2.4GHz) and Mali-G610 GPU deliver responsive performance. Audio system comprises 2×16W front speakers plus 16W subwoofer.

Ideal for: Large university lecture halls, government auditorium installations, and corporate training facilities in Oman requiring panoramic 5K interactive displays with professional-grade pen writing and integrated voice conferencing for remote learning and board-level presentations.

  • 105-inch ultrawide 5K UHD (5120×2160), 450 cd/m², zero air-gap glass
  • iiWare 11 (Android 13), 8GB RAM, 64GB storage
  • 40-point infrared touch, 32-point writing (HID), ±1mm accuracy, palm rejection
  • Octa-Core A311D2, 8-array microphone (8m voice), dual USB-C with 100W/15W PD, Wi-Fi 6
  • Gigabit Ethernet auto-switch, 5-year warranty

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size
105 inch
Resolution
5120 × 2160 (14.75 megapixel, 5K UHD)
Display Color
1.07B 10bit (NTSC 90%)
Brightness
450 cd/m²
Backlight
VA
Viewing Angle
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Blue Light Filter
Yes
Ambient Light Sensor
Yes
Surface Protection
AG coated glass, zero bonding

Touch

Touch Technology
PureTouch-IR
Touch Points
40, 32pt writing (HID, only with supported OS)
Touch Accuracy
± 1 mm
Palm Rejection
Yes

System

Operating System
Android 13.0
Processor
CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB
GPU
Mali G610
RAM
8 GB
Storage
64 GB
OPS slot
Optional
Sensors
Microphone 8-Array (8m voice pick-up, front facing), Ambient Light Sensor

Connectivity

HDMI Input
HDMI In (HDMI 2.1) × 1; HDMI In (HDMI 2.0) × 3
HDMI Output
HDMI Out × 1
DisplayPort
DisplayPort x1 (1.4, max. 5120×2160 @60Hz)
USB-C input
Type-C × 2 (Front × 1; Rear × 1)
USB-C functions
USB 3.2 Gen 1, 3840 × 2160, DP Alt mode 1.2, Touch, 15W PD (front), 100W PD (back)
USB Ports
x8 (media playback / peripherals / storage – front: 2× 3.2 (Gen 1, 5Gbit), 1× USB-C 3.2 (Gen 1, 15W PD), back side: 2× 3.2 (Gen 1, 5Gbit), 1× USB-C 3.2 (Gen 1, 100W PD), top side: 2× 3.2 (Gen 1, 5Gbit))
Additional Ports
HDMI x4 (1× 2.1, max. 5120× 2160 @60Hz; 3× 2.0, max. 3840×2160 @60Hz, YUV444); DisplayPort x1 (5120); USB-C x2 (3.2 Gen 1, 3840×2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD); HDMI x1 (3840×2160 @60Hz, YUV/RGB444); USB-C x1 (3.2 Gen 1, 3840×2160 @60Hz (DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display))
Audio in
Mini jack x1
Audio out
S/PDIF (Optical) x1; Mini jack x1; Speakers 2 × 16W (Front + 16W Subwoofer)
Ethernet
x2 (IN/OUT, Auto switch for PC & Android, 1000MB)
Wi-Fi
yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Bluetooth
Bluetooth 5.0
Serial Port
RS232 × 1
Connectivity Options
USB; RS-232c x1

Camera & audio

Camera
8-Array (8 m voice pick-up, Front facing)
Built In Microphone
8-Array (8m voice pick-up, Front facing)
Speaker Type
Built-in Speakers
Speaker Output
2 × 16W (Front + 16W Subwoofer)

Physical & warranty

Dimensions
2507.2 × 1130.1 × 103 mm
Weight
91.4 kg
Shipping Dimensions
2668 × 1305 × 280 mm
Shipping Weight
119.5 kg
VESA
1000 × 400mm
Mounting Orientation
landscape
Wall Mount
1000 × 400 mm (VESA)
Material
metal
Finishes
black, matte
Power Consumption
282W typical, 0.5W stand by, 0.3W off mode
Power Standby
0.5 W
Operating Temperature
0 °C - 40 °C
Certifications
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Warranty
5 Years

Other

Package Contents
power, USB, HDMI
Included Cables
Power, USB, HDMI
Accessories
Remote control, Touch pen × 4, WiFi Module, Wall Mounting Bracket, Mounting bracket for NUC, Mounting bracket for webcam
