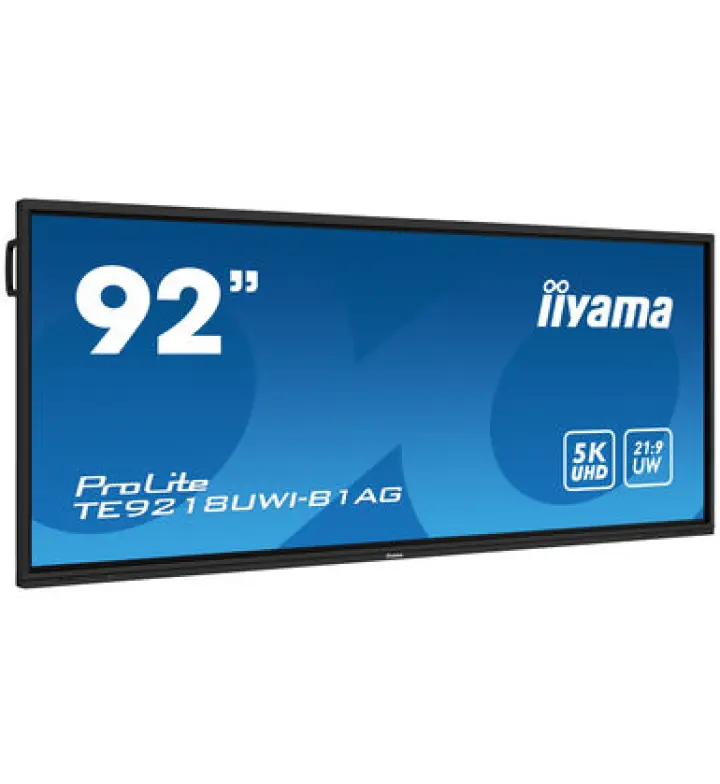

IIYAMA ProLite TE9218UWI 92" 5K UHD Ultra-wide Display

iiyama

IIYAMA ProLite TE9218UWI 92" 5K UHD Ultra-wide Display

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN TE9218UWI-B1AG SKU TE9218UWI-B1AG

92-inch panoramic 5K UHD ultra-wide interactive display with 50-point touch, 500 cd/m² brightness, 5-year warranty.

Screen size: 92"
Resolution: 5K (5120 × 2160)
Touch: 50 points
System: Android 13

Pricing

Price on request in OMR

Include in your quote

Installation Mounting / trolley OPS PC (Windows) Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size: 92 inch
Resolution: 5120 × 2160 (14.75 megapixel, 5K UHD)
Display Color: 1.07B 10bit (NTSC 90%)
Brightness: 500 cd/m²

Touch and writing

Touch Technology: PureTouch-IR+
Touch Points: 50, 32pt writing (HID, only with supported OS)
Touch Accuracy: ± 1 mm

Built-in system

Operating System: Android 13.0
Processor: CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB
GPU: Mali G610
RAM: 8 GB

Description

The IIYAMA ProLite TE9218UWI-B1AG delivers a distinctive 92-inch ultra-wide 5K display (5120×2160, 21:9 aspect ratio) for immersive control room and command centre environments. PureTouch-IR+ enables 50-point multi-touch interaction with ±1 mm accuracy on an ultra-smooth AG-coated glass surface. Running iiWare 11 (Android 13), it combines 500 cd/m² brightness with 10-bit colour and optional Wi-Fi 6 module for flexible deployment.

Built on octa-core processor (A311D2 with A76×4 + A55×4 cores at 2.4GHz) and Mali G610 GPU, paired with 8GB RAM and 64GB storage. Ultra-wide HDMI connectivity spans 4 inputs (1×HDMI 2.1 for 5K@60Hz, 3×HDMI 2.0), plus DisplayPort 1.4, dual USB-C 3.2 Gen1, and dual Gigabit Ethernet. Includes mounting bracket, 4 anti-bacterial touch pens, and optional OPS Slot PC. 5-year warranty covers enterprise-grade reliability.

Ideal for: Command centres, air traffic control, security monitoring, simulation control rooms, and large-format videoconferencing in government and critical infrastructure facilities across Oman.

92" ultra-wide 5K UHD (5120×2160), 60 Hz, 500 cd/m² brightness
50-point PureTouch-IR+ multi-touch, ±1 mm accuracy, 32-point writing
8GB RAM, 64GB storage, Octa-core processor with Mali G610 GPU
HDMI 2.1 + 3×HDMI 2.0, DisplayPort 1.4, dual USB-C, dual Gigabit Ethernet
iiWare 11 (Android 13), optional Wi-Fi 6 module, 5-year warranty

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size: 92 inch
Resolution: 5120 × 2160 (14.75 megapixel, 5K UHD)
Display Color: 1.07B 10bit (NTSC 90%)
Brightness: 500 cd/m²
Backlight: VA
Viewing Angle: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Blue Light Filter: Yes
Ambient Light Sensor: Yes
Surface Protection: AG coated glass, zero bonding

Touch

Touch Technology: PureTouch-IR+
Touch Points: 50, 32pt writing (HID, only with supported OS)
Touch Accuracy: ± 1 mm
Palm Rejection: Yes

System

Operating System: Android 13.0
Processor: CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB
GPU: Mali G610
RAM: 8 GB
Storage: 64 GB
OPS slot: Optional

Connectivity

HDMI Input: HDMI In (HDMI 2.1 × 1, HDMI 2.0 × 3)
HDMI Output: HDMI Out × 1
DisplayPort: DisplayPort x1 (1.4, max. 5120×2160 @60Hz)
USB-C input: Type-C × 2 (Front × 1; Rear × 1)
USB-C functions: Supports USB 3.2 Gen 1, 100W Charging, DP IN 1.2, Touch
USB Ports: x8 (media playback / peripherals / storage – front: 2× 3.2 (Gen 1, 5Gbit), 1× USB-C 3.2 (Gen 1, 15W PD, DP Alt 1.2), back side: 2× 3.2 (Gen 1, 5Gbit), 1× USB-C 3.2 (Gen 1, 100W PD, DP Alt 1.2), top side: 2× 3.2 (Gen 1, 5Gbit))
Touch USB ports: USB
Additional Ports: HDMI x4 (1× 2.1, max. 5120× 2160 @60Hz; 3× 2.0, max. 3840×2160 @60Hz, YUV444); DisplayPort x1 (5120); USB-C x2 (3.2 Gen 1, 3840×2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD); HDMI x1 (3840×2160 @60Hz, YUV/RGB444); USB-C x1 (3.2 Gen 1, 3840×2160 @60Hz (DP 1.2 Alt mode, Touch, 15W PD, MSD (Multi-Screen Display))
Audio in: Mini jack x1
Audio out: S/PDIF (Optical) x1; Mini jack x1; Speakers 2 × 20W (Front + 20W Subwoofer)
Ethernet: x2 (IN/OUT, Auto switch for PC & Android, 1000MB)
Wi-Fi: yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
Bluetooth: Bluetooth 5.0
Serial Port: RS232 × 1
Connectivity Options: USB; RS-232c x1 (DSUB 9pin)

Camera & audio

Camera: 8-Array Microphones (8 m voice pick-up, Front facing)
Built In Microphone: 8-Array (8m voice pick-up, Front facing)
Speaker Type: Built-in Speakers
Speaker Output: 2 × 20W (Front + 20W Subwoofer)

Physical & warranty

Dimensions: 2203 × 1000 × 92 mm
Weight: 67.6 kg
Shipping Dimensions: 2360 × 225 × 1140 mm
Shipping Weight: 88.5 kg
VESA: 800 × 600mm
Mounting Orientation: landscape
Wall Mount: 800 × 600 mm (VESA)
Material: metal
Finishes: black, matte
Power Consumption: 227W typical, 0.5W stand by, 0.3W off mode
Power Standby: 0.5 W
Operating Temperature: 0 °C - 40 °C
Certifications: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Warranty: 5 Years

Other

Model: ProLite TE9218UWI-B1AG
Package Contents: power, USB, HDMI
Included Cables: Power, USB, HDMI
Accessories: Remote control, Touch pen × 4, Wall Mounting Bracket, Mounting bracket for NUC, Mounting bracket for webcam, WiFi Module, Quick start guide, Safety guide
More Information: https://iiyama.com/de_de/produkte/prolite-te9218uwi-b1ag/
