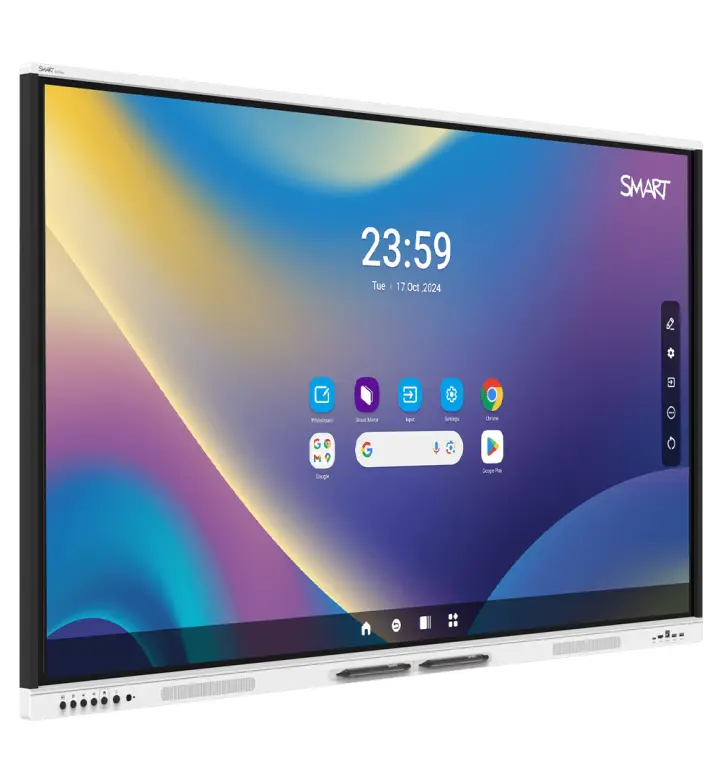

SMART Board GX186 86" 4K Interactive Display Plus, 400 cd/m², 50-touch
SKU GX186N-V4
86-inch 4K interactive panel with 50-point infrared touch, 400 cd/m², ≤2.5 ms response, Android 14, palm rejection.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Brightness
- 400 cd/m²
- Backlight
- LED
Touch and writing
- Touch Technology
- Infrared
- Touch Points
- Up to 50 touch points (OS dependent)
- Touch Accuracy
- 1 mm
- Touch Response Time
- ≤ 5 ms
Built-in system
- Operating System
- Android 14
- Processor
- Octa-core
- RAM
- 8 GB DDR4
- Storage
- 64 GB (up to 576 GB)
Description
The SMART Board GX186N-V4 is an 86-inch 4K UHD interactive flat panel with 400 cd/m² brightness and 50-point infrared multi-touch featuring palm rejection and pen-touch differentiation. Android 14 with 8 GB RAM and 64 GB storage enables collaboration via HDMI 2.1 (3 inputs), USB-C (2), USB 3.2, and dual gigabit Ethernet. Optional OPS PC slot supports Windows.
Ultra-responsive ≤2.5 ms touch with ±1 mm accuracy on anti-glare glass. Dual 20 W speakers and microSD card expansion optimize audio and storage. Ambient light and infrared sensors provide smart display adaptation. 51 kg weight on 800×600 mm VESA mount suits permanent large-scale installations. Standby power ≤0.2 W.
Ideal for: Large corporate auditoriums, university lecture halls, government presentation centres, and hospital auditoriums across Oman where 86-inch ultra-responsive interactive displays enable high-impact presentations and advanced collaboration.
- Resolution: 4K UHD
- Screen size: 86 inches
- Brightness: 400 cd/m²
- Touch points: 50, infrared, ≤2.5 ms response
- Operating system: Android 14
- Processor: Octa-core
- RAM/Storage: 8 GB / 64 GB
- Palm rejection: Yes
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Brightness
- 400 cd/m²
- Backlight
- LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Touch
- Touch Technology
- Infrared
- Touch Points
- Up to 50 touch points (OS dependent)
- Touch Accuracy
- 1 mm
- Touch Response Time
- ≤ 5 ms
System
- Operating System
- Android 14
- Processor
- Octa-core
- RAM
- 8 GB DDR4
- Storage
- 64 GB (up to 576 GB)
- OPS slot
- SMART PCM modules
Connectivity
- HDMI Input
- HDMI In (HDMI 2.1) × 3
- HDMI Output
- HDMI Out × 1
- DisplayPort
- Front: –; Back: 1
- VGA input
- Front: –; Back: 1
- USB-C input
- Front: 1; Back: –
- USB Ports
- Front: 2; Back: 3
- Touch USB ports
- Front: 1; Back: 1
- Audio out
- Front: –; Back: 1
- Ethernet
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 and PSK authentication protocols; Wi-Fi access point
- Bluetooth
- Bluetooth 5.2
- Serial Port
- Front: –; Back: 1
- SD card slot
- Front: –; Back: 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20 W
Physical & warranty
- Dimensions
- 1957 × 1160 × 96 mm
- Weight
- 51 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Colour
- White
- Power Consumption
- < 130 W
- Operating Temperature
- 32–104°F ( 0–40°C )
- Operating Humidity
- 20–80% relative humidity, non‑condensing
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Other
- Included Cables
- Power cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1
- Accessories
- Pens × 2, Remote control × 1, AAA batteries × 2, Installation instructions × 1, Important information document × 1, Wi-Fi/Bluetooth antennas × 2
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
Questions about ordering
How do I get a price?
Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email sales@smartrooms.me with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.
Do you deliver across Oman, and how long does it take?
Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.
Do you install?
Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.
What warranty applies?
The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.
Do you support government tenders?
Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.
Can I get the quotation in Arabic?
Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
