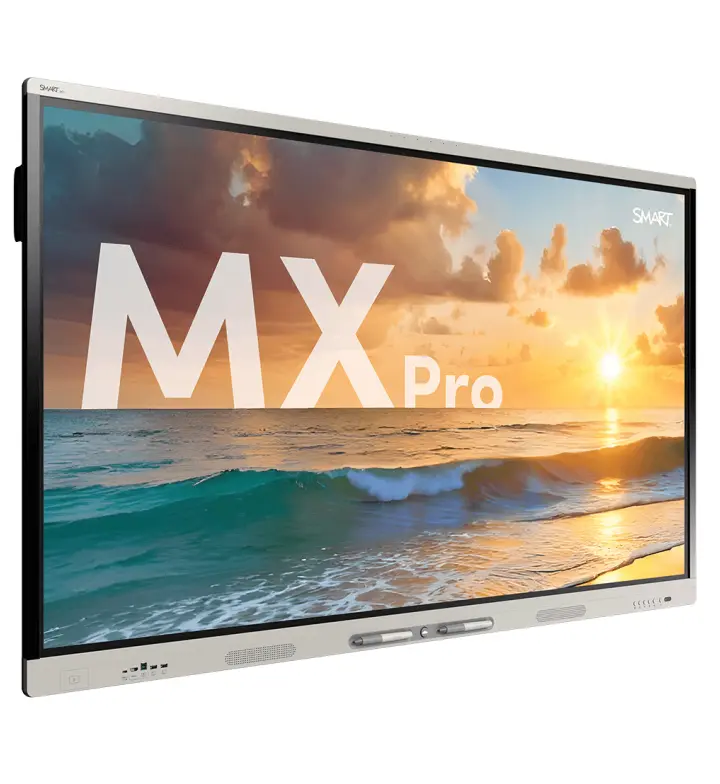

SMART Board MX086-V5 Pro 86" 4K Interactive Display, 50pt Touch
SKU MX286-V5-PW
86" 4K UHD interactive display with 50-point infrared touch, 400 cd/m² brightness, Android 13, octa-core processor, Wi-Fi 6e for enterprise collaboration.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Brightness
- 400 cd/m²
- Backlight
- LED
Touch and writing
- Touch Accuracy
- 1 mm
- Touch Technology
- HyPr Touch with Advanced IR
- Touch Points
- Up to 50 touch points (OS dependent)
- Touch Response Time
- ≤ 5 ms
Built-in system
- Processor
- Octa-core
- Operating System
- Android 15; Supports an automatic update to Android 17
- RAM
- 8 GB DDR4
- Storage
- 64 GB (up to 576 GB)
Description
SMART Board MX086-V5 Pro 86-inch 4K UHD interactive flat panel with 50-point infrared touch and 400 cd/m² brightness. Purpose-built for corporate collaboration, training delivery and large-scale interactive environments. Infrared touch technology with anti-glare smooth glass and 178° viewing angle suits boardrooms, auditoriums and training halls. Supports 4 HDMI 2.1 inputs (next-gen bandwidth), dual DP 1.2, dual Type-C (27W/65W PD + DP 1.2), VGA, and dual Gigabit LAN. Android 13 OS with octa-core processor, 8GB RAM and 64GB storage enables sophisticated applications without external PC. Optional OPS PC slot adds Windows mini-PC capability.
Touch accuracy of ±1 mm with ≤5 ms response time delivers pixel-perfect interaction and pen writing. Built-in microSD slot allows portable content. Palm rejection distinguishes finger from stylus. NFC card reader supports credential-less sign-on. Proximity and ambient light sensors enable auto-brightness and wake features. Dual 20W speakers provide meeting-grade audio. Ultra-low standby draw (0.2 W) suits 24/7 networked deployments. Shipping dimensions accommodate tight venue loading.
Ideal for: Executive boardrooms, university learning commons, corporate training suites, government briefing rooms, and high-end collaborative spaces across Oman.
- 86-inch 4K UHD (3840×2160), 10-bit colour, 60 Hz refresh
- 50-point infrared touch, ±1 mm accuracy, ≤5 ms response, 32768×32768 resolution
- 400 cd/m² brightness, anti-glare smooth glass, proximity sensor, ambient light sensor
- Android 13, Octa-core CPU, 8GB RAM, 64GB storage, microSD card slot
- 4× HDMI 2.1, DP 1.2×2, Type-C×2 (27W/65W PD + DP 1.2), VGA, Gigabit LAN×2, RS232
- NFC reader, palm rejection, pen/touch differentiation, Bluetooth 5.2, Wi-Fi 6e (2.4/5/6 GHz)
- 2×20W speakers, optional OPS slot, VESA 800×600, 68 kg, <5°C to 35°C operating
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Brightness
- 400 cd/m²
- Backlight
- LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- HyPr Touch with Advanced IR
- Touch Points
- Up to 50 touch points (OS dependent)
- Touch Accuracy
- 1 mm
- Touch Response Time
- ≤ 5 ms
System
- Operating System
- Android 15; Supports an automatic update to Android 17
- Processor
- Octa-core
- RAM
- 8 GB DDR4
- Storage
- 64 GB (up to 576 GB)
- OPS slot
- SMART PCM modules
Connectivity
- HDMI Input
- HDMI In (HDMI 2.1) × 4
- HDMI Output
- HDMI Out × 1
- VGA input
- Front: –; Back: 1
- USB-C input
- Front: 1; Back: –
- USB Ports
- USB 3.2 Gen 1 × 4, USB 2.0 × 1
- Audio out
- Front: –; Back: 1
- Ethernet
- Front: –; Back: 1
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
- Bluetooth
- Bluetooth 5.2
- Serial Port
- Front: –; Back: 1
- SD card slot
- Front: –; Back: 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20 W
Physical & warranty
- Dimensions
- 2165 × 1445 × 160 mm
- Weight
- 68 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Colour
- White
- Power Consumption
- 149 W
- Operating Temperature
- 41–95°F ( 5–35°C )
- Operating Humidity
- 5–80% relative humidity, non‑condensing
- Certifications
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Other
- Included Cables
- Power cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1
- Accessories
- Pens × 2, Remote control × 1, AAA batteries × 2, Wi-Fi/Bluetooth antennas × 2, Installation instructions × 1, Important information document × 1
