65" · 4K UHD · Android 13
Trend

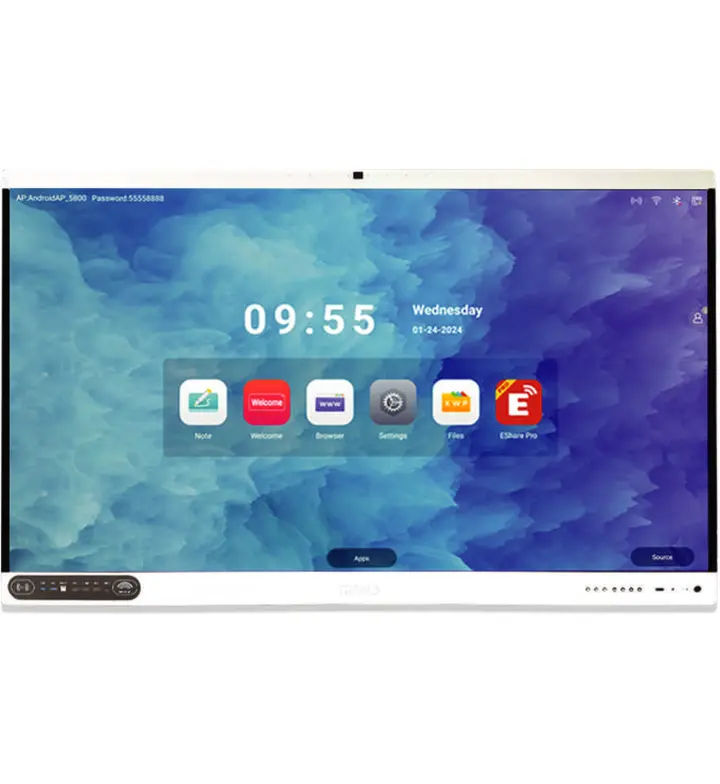

Trend C-Series 86" 4K Interactive Flat Panel, Android 13
MPN TR-FPC86T82
SKU TR-FPC86T82
86" Trend C-Series 4K UHD interactive flat panel with a 48 MP AI camera, 8-microphone array and Android 13 (Google EDLA), for boardrooms in Oman.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Display Color
- 1.07 Billion colors (10-bit)
- Brightness
- Over 400 cd/m²
Built-in system
- GPU
- Mali-G610 MC4
- Operating System
- Android 13 (Google EDLA certified, Google Play Store)
- NPU
- 6 TOPS
- RAM
- 16 GB
Camera and audio
- Field Of View
- 120°
- Camera Resolution
- 48 MP; max. 8000 × 6000 @ 5 fps / 9280 × 6936 @ 5 fps
- Built In Microphone
- 8-microphone array (wide-area) with noise reduction
- Microphone Range
- 8 m
Description
The Trend C-Series TR-FPC86T82 is an 86" 4K UHD interactive flat panel with a 1896.41 × 1070.90 mm active area, built as a self-contained conferencing and teaching display. It runs Google EDLA-certified Android 13 on a Rockchip RK3588 processor with a Mali-G610 MC4 GPU, 16 GB RAM and 256 GB storage.
For meetings, a 48 MP Sony-sensor AI camera with a 120° field of view frames the room automatically and tracks the active speaker, while an 8-microphone array with noise reduction picks up voices at up to 8 m. Sound comes from a full-duplex 2.1 system of 2 × 20 W speakers and a 20 W subwoofer, and the panel is Zoom and Teams ready. Administrators can manage several panels centrally through the Digital Management System (DMS), deliver OTA updates, and give each user a profile unlocked by password, NFC or fingerprint.
Ideal for: boardrooms, large meeting rooms, larger classrooms and training suites in corporate, education and government buildings across Oman.
- Display: 86", 4K UHD (3840 × 2160), 60 Hz, over 400 cd/m²
- Active area: 1896.41 × 1070.90 mm; pixel pitch 0.4935 × 0.4935 mm
- Conferencing: 48 MP AI camera, 120° field of view, 8-microphone array (8 m)
- Platform: Android 13 (Google EDLA certified), RK3588, 16 GB / 256 GB
- Ports: HDMI In × 3 front and × 4 bottom, HDMI Out × 1, Type-C Out × 2, RJ45 × 1
- Power: max. under 350 W, Eco under 75 W, standby ≤ 0.5 W
- Weight: 75 kg net / 85 kg gross (±2 kg)
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Display Color
- 1.07 Billion colors (10-bit)
- Brightness
- Over 400 cd/m²
- Backlight
- Ultra HD direct-type LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178°
- Ambient Light Sensor
- Yes (auto-brightness)
- Surface Protection
- Anti-glare glass with zero bonding, Mohs 7 hardness
Touch
- Touch Technology
- Infrared (IR), zero bonding (0 mm air gap at centre, 0.8 mm at edge)
- Touch Points
- 40 Points Multi Touch (Windows), 30 points (Android)
- Touch Accuracy
- 1 mm (over 90% of area)
- Touch Response Time
- First point < 2 ms, continuation < 8 ms
System
- Operating System
- Android 13 (Google EDLA certified, Google Play Store)
- Processor
- Rockchip RK3588, octa-core (4 × Cortex-A76 + 4 × Cortex-A55), up to 2.4 GHz, 8 nm
- GPU
- Mali-G610 MC4
- NPU
- 6 TOPS
- RAM
- 16 GB
- Storage
- 256 GB
- OPS slot
- Yes (80-pin OPS slot)
- AI features
- AI whiteboard: handwriting and shape recognition, text recognition, text-to-speech, speech-to-text, multilingual translation, AI-generated quizzes; ChatGPT & DeepSeek integration
- Sensors
- Light sensor; temperature, humidity and air-quality (TVOC) sensors; fingerprint module; NFC reader/writer
Connectivity
- HDMI Input
- HDMI In × 3 (Front), HDMI In × 4 (Bottom)
- HDMI Output
- HDMI Out × 1
- USB Ports
- USB 3.0 × 2 (Front), Android USB 3.0 × 3 (Bottom), Android USB 2.0 × 1 (Bottom)
- Touch USB ports
- USB-B (touch) × 1 (Front), Touch-USB × 2 (Bottom)
- Additional Ports
- Type-C × 1 (Front), Type-C Out × 2 (Bottom), SPDIF Out × 1 (Bottom)
- Audio in
- Mic In × 1
- Audio out
- Earphone × 1
- Ethernet
- RJ45 × 1
- Wi-Fi
- Wi-Fi 5 + Wi-Fi 6 + AP
- Bluetooth
- Bluetooth 5.2
- Serial Port
- RS232 × 1
- SD card slot
- TF card × 1
- NFC card reader
- Yes (NFC reader/writer)
Camera & audio
- Camera
- 4K AI camera, 48 MP Sony sensor, auto-framing and AI speaker tracking, wide-angle lens
- Camera Resolution
- 48 MP; max. 8000 × 6000 @ 5 fps / 9280 × 6936 @ 5 fps
- Built In Camera
- Yes
- Field Of View
- 120°
- Built In Microphone
- 8-microphone array (wide-area) with noise reduction
- Microphone Range
- 8 m
- Speaker Type
- Front speakers + subwoofer, full-duplex 2.1 sound system
- Speaker Output
- 2 × 20 W + 20 W subwoofer
- Speaker Output Power
- ≤ 60 W total amplifier power
- Microsoft Teams ready
- Yes
- Zoom ready
- Yes
Physical & warranty
- Weight
- 75 kg (±2 kg)
- Shipping Dimensions
- 2055 × 168 × 1272 mm (W × D × H)
- Shipping Weight
- 85 kg (±2 kg)
- Colour
- White
- Material
- Aluminium frame
- Power Consumption
- Max. < 350 W, Eco < 75 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0 °C - 40 °C
- Operating Humidity
- 10% - 90%
- Certifications
- Google EDLA
Other
- Type
- Interactive Flat Panel
- Key Features
- QLED 4K display, 10-bit colour, 115% colour gamut, 8K video decoding; wireless screen sharing from up to 16 devices; session recording of Android and OPS screens simultaneously; cloud broadcasting; split & dual screen mode; user profiles with password, NFC or fingerprint login; Digital Management System (DMS) for remote management; over-the-air (OTA) updates
- Additional Features
- Active area 1896.41 × 1070.90 mm; pixel pitch 0.4935 × 0.4935 mm; Contrast ratio 1200:1 (typ.); 50,000-hour lifespan; 16:9 aspect ratio; touch auto-calibration; 2 mm minimum touch object; anti-light touch; touch compatible with Windows 10/11, Android, Mac, Linux, Chrome OS; power supply 100–240 V (50/60 Hz)
- Included Cables
- Power cord 1.5 m × 1, HDMI cable 1.5 m × 1, USB touch cable 1.5 m × 1
- Accessories
- 3 × Wi-Fi antenna, 2 × Stylus pen, 1 × Remote control, 1 × Wall mount kit
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
