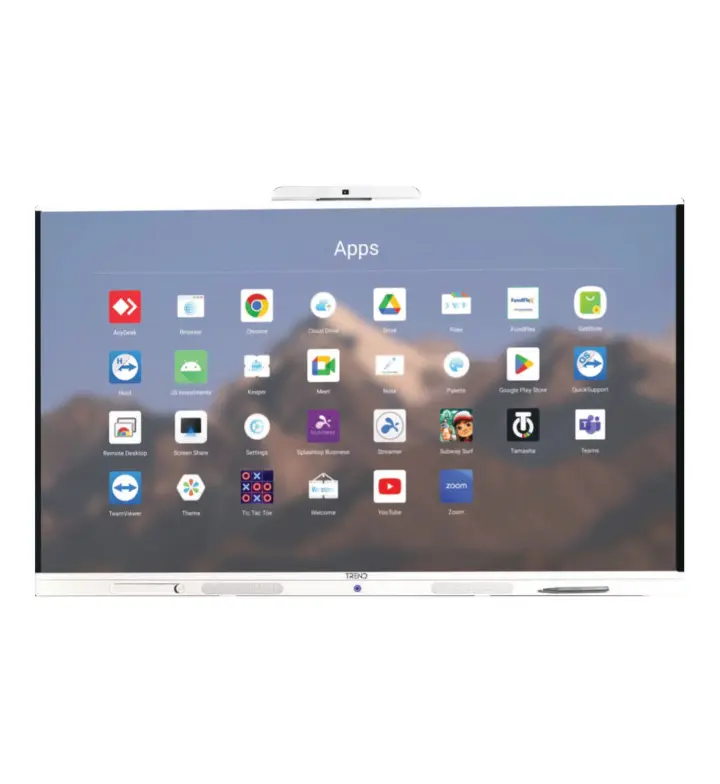

Trend D-Series 86" 4K Interactive Flat Panel, Android 14
MPN TR-FPV86T82
SKU TR-FPV86T82
86" Trend interactive flat panel with 4K UHD, 20-point touch and Android 14, with an optional 4K camera and 8-mic array for video conferencing rooms.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 20 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Display Color
- 1.07 Billion colors (10-bit)
- Brightness
- 400 cd/m²
Touch and writing
- Touch Points
- 20 points
- Touch Technology
- Infrared (IR), zero bonding (0–1 mm air gap)
- Touch Accuracy
- ±1 mm (≥ 90% of touch area)
- Touch Resolution
- 32768 × 32768
Built-in system
- Operating System
- Android 14
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Yes (Slot), Windows OPS PC module optional
Description
The Trend D-Series TR-FPV86T82 is an 86" interactive flat panel for rooms where people join from elsewhere. Its 4K UHD (3840 × 2160) screen has a 1897 × 1068 mm display area and 400 cd/m² brightness, and Android 14 comes with pre-built business and video conferencing apps.
An optional 4K 48 MP camera adds auto framing and speaker tracking across a 100° view, and an optional 8-array omnidirectional microphone picks up voices from 0–8 m with 3D noise reduction and echo cancellation. Sound comes from 2 × 15 W built-in stereo speakers. The optional Type-C port gives a laptop access to the panel camera and microphone, and the OPS slot takes an optional Windows PC module alongside the built-in 8 GB RAM and 128 GB storage. Touch is 20-point infrared with zero bonding.
Ideal for: boardrooms, video conferencing rooms and lecture rooms in Oman. At 1953.6 × 1181.7 × 91.8 mm and 73 kg, it is supplied with a mount bracket, and a mobile floor stand is optional.
- Display area 1897 × 1068 mm, pixel pitch 0.4935 × 0.4935 mm
- 4K UHD (3840 × 2160), 400 cd/m², 178° (H) / 178° (V)
- Optional camera: 4K, 48 MP, auto framing, speaker tracking
- Optional 8 Array microphone, 0–8 m pickup
- 20 Points Multi Touch, Android 14, 8 GB RAM, 128 GB storage
- Power 380 W, standby ≤ 0.5 W
- Net weight 73 kg, packed 88.4 kg
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD (3840 × 2160)
- Display Color
- 1.07 Billion colors (10-bit)
- Brightness
- 400 cd/m²
- Backlight
- D-LED (direct-lit)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Toughened anti-glare glass (double-sided anti-glare), 7H (Mohs), anti-fingerprint coating
Touch
- Touch Technology
- Infrared (IR), zero bonding (0–1 mm air gap)
- Touch Points
- 20 Points Multi Touch
- Touch Accuracy
- ±1 mm (≥ 90% of touch area)
- Touch Resolution
- 32768 × 32768
- Touch Response Time
- < 7 ms
System
- Operating System
- Android 14
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Yes (Slot), Windows OPS PC module optional
- AI features
- Auto framing, speaker tracking (optional camera)
Connectivity
- HDMI Input
- HDMI In × 3 (1 Front, 2 Back); HDMI 2.0, 4K @ 60 Hz (port shown on interface diagram)
- HDMI Output
- HDMI Out × 1 (Optional)
- USB-C input
- Type-C × 1 (Optional)
- USB-C functions
- 15 W charging; data, audio and video transmission; access to the panel camera and microphone; reverse touch control for laptop or phone screen casting
- USB Ports
- USB 3.0 × 2, USB 2.0 × 3 (2 Front, 1 Back)
- Touch USB ports
- Touch-USB × 2 (1 Front, 1 Back)
- Additional Ports
- SPDIF × 1
- Audio in
- PC Audio In × 1
- Ethernet
- RJ45 × 2
- Wi-Fi
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz)
- Serial Port
- RS232 × 1
- NFC card reader
- Optional
Camera & audio
- Camera
- Optional
- Camera Resolution
- 4K, 48 MP (optional camera)
- Field Of View
- 100° (optional camera)
- Built In Microphone
- Optional: 8 Array microphone, omnidirectional, 3D noise reduction, echo cancellation
- Microphone Range
- 0–8 m (optional microphone)
- Speaker Type
- Built-in Speakers (stereo)
- Speaker Output
- 2 × 15 W (8 Ω)
Physical & warranty
- Dimensions
- 1953.6 × 1181.7 × 91.8 mm
- Weight
- 73 kg
- Shipping Dimensions
- 216 × 28 × 134 cm
- Shipping Weight
- 88.4 kg
- Colour
- Matte White
- Power Consumption
- 380 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- -10 °C to 50 °C
- Operating Humidity
- 10% - 90% RH
Other
- Key Features
- Windows Ink compatible (write on MS Office documents), wireless screen sharing for up to 4 displays, BYOD, Google Play Store, pre-built business and video conferencing apps, multi-language support
- Additional Features
- Display area 1897 × 1068 mm, pixel pitch 0.4935 × 0.4935 mm, contrast ratio 4000:1 (typ.), panel response time 8 ms, colour gamut 72% NTSC (typ.), lifetime 60,000 hrs, minimum touch object 2 mm, touch operating life over 60,000,000 clicks, touch OS support: Windows 10/8/7/XP, Android, Linux, Mac OS X, Chrome
- Included Cables
- Power cord × 1, USB cable × 1, HDMI cable × 1
- Accessories
- Stylus pen × 1, Mount bracket × 1, Operation instructions × 1; mobile floor stand optional
