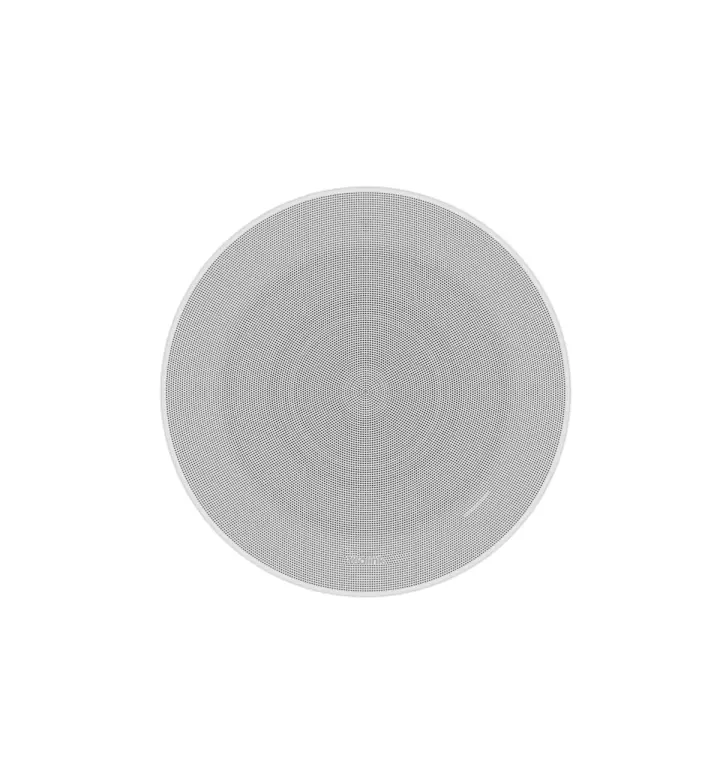

Yealink CS10-D Dante 2-Way Coaxial Ceiling Loudspeaker

The Yealink CS10-D is the Dante edition of Yealink's low-profile 2-way coaxial ceiling loudspeaker. It receives audio over the Dante protocol, so it works with a wide range of standard Dante devices. A 145 mm (5.7") woofer and a 28 mm (1.1") tweeter deliver 100 Hz – 20 kHz (-6 dB), 88 dB sensitivity (1 W, 1 m) and up to 99 dB continuous SPL at 20 W, 1 m, over a 120° nominal coverage angle.

As an active speaker with an integrated DAC, the CS10-D takes power and audio through one RJ-45 port on PoE+ (IEEE 802.3at Class 4), rated at 24 W with 20 W typical. Its voicing is tuned first for video conferencing, with emphasis on the mid-range. The detachable, paintable magnetic grille ships in white, with black optional, and the speaker suits a variety of ceiling types and grid systems.

Ideal for: boardrooms and large meeting rooms in Oman that distribute audio over a Dante network. The CS10-D is Certified for Microsoft Teams, Zoom Certified and plenum rated to UL 2043.

• Drivers: 145 mm woofer + 28 mm tweeter, 8 Ω
• Frequency response: 100 Hz – 20 kHz (-6 dB)
• Max SPL: 99 dB continuous @ 20 W, 1 m
• Power: PoE+ (IEEE 802.3at Class 4), 24 W rated
• Size: Ø294 × 125.8 mm with cover mesh
• Weight: 2808 g without cover mesh
• Operating temperature: 0 °C – 50 °C
