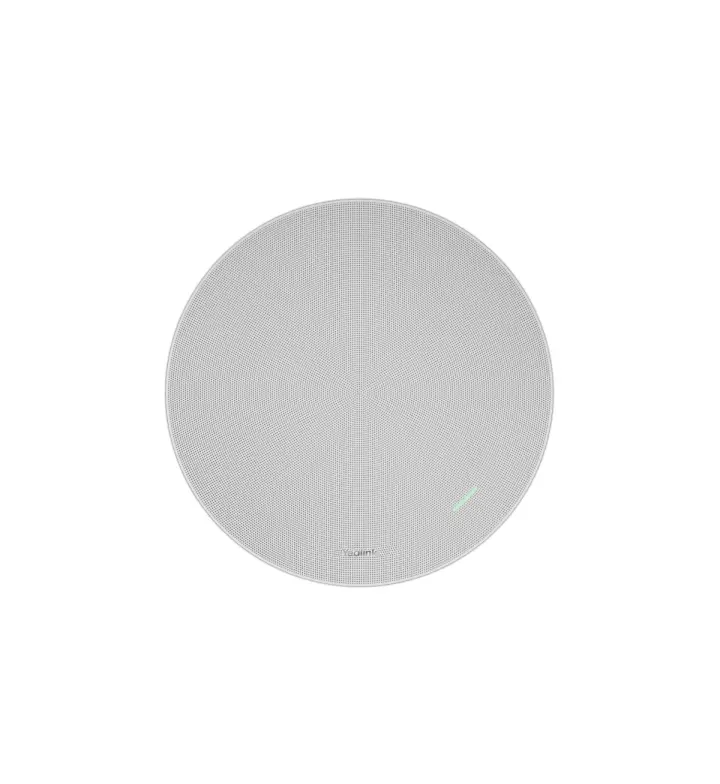

Yealink CS10 PoE 2-Way Coaxial Network Ceiling Loudspeaker
SKU CS10
Low-profile PoE+ ceiling loudspeaker with a 145 mm woofer and 28 mm tweeter, 99 dB max SPL and 120° coverage, for meeting-room voice playback.
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Ports and connections
- Ethernet
- 1 × RJ-45
Description
The Yealink CS10 is the general (non-Dante) edition of Yealink's low-profile 2-way coaxial network ceiling loudspeaker. A 145 mm (5.7") woofer and a 28 mm (1.1") tweeter share one axis, giving a 100 Hz – 20 kHz response (-6 dB), 88 dB sensitivity (1 W, 1 m) and up to 99 dB continuous SPL at 20 W, 1 m across a 120° nominal coverage angle.
The CS10 is an active speaker with an integrated DAC: audio arrives over the network and power over PoE+ (IEEE 802.3at Class 4) on a single RJ-45 port, at 24 W rated and 20 W typical. Its sound profile is tuned for video conferencing, with emphasis on the mid-range where speech sits. The detachable, paintable magnetic grille ships in white, with a black cover available separately, and the speaker installs in a range of ceiling types and grid systems.
Ideal for: medium, large and divisible meeting rooms in Oman where clear voice playback is needed from the ceiling. The CS10 is Certified for Microsoft Teams and plenum rated to UL 2043.
- Drivers: 145 mm woofer + 28 mm tweeter, 8 Ω
- Frequency response: 100 Hz – 20 kHz (-6 dB)
- Max SPL: 99 dB continuous @ 20 W, 1 m
- Power: PoE+ (IEEE 802.3at Class 4), 24 W rated
- Size: Ø294 × 125.8 mm with cover mesh
- Weight: 2808 g without cover mesh
- Operating temperature: 0 °C – 50 °C
Specifications
Manufacturer specifications · confirmed on your quotation
Connectivity
- Ethernet
- 1 × RJ-45
Camera & audio
- Speaker Type
- 2-way coaxial: 145 mm (5.7") LF woofer + 28 mm (1.1") HF tweeter; 8 Ω; 120° nominal coverage angle
- Speaker Output
- Frequency response 100 Hz – 20 kHz (-6 dB); max SPL 99 dB continuous @ 20 W, 1 m; sensitivity 88 dB @ 1 W, 1 m; THD < 1%
- Microsoft Teams ready
- Yes (Certified for Microsoft Teams)
Physical & warranty
- Dimensions
- Ø294 × 125.8 mm (with cover mesh); Ø287.2 × 125 mm (without cover mesh)
- Weight
- 2808 g (without cover mesh); cover mesh 207 g
- Shipping Dimensions
- 398 × 355 × 185 mm (carton)
- Shipping Weight
- 4.628 kg net / 5.597 kg gross per carton
- Mounting Option
- Indoor ceiling installation; suits various ceiling types and grid systems
- Colour
- White / black; ships with white mesh cover (black cover optional)
- Material
- Cover mesh PC/ABS + welded SPCC; main shell PA (polyamide) with 15% GF; bottom shell aluminium alloy; cover plate PC/ABS and SGCC
- Power Consumption
- PoE+ (IEEE 802.3at Class 4); 24 W rated, 20 W typical
- Operating Temperature
- 0 °C – 50 °C
- Operating Humidity
- 5% – 90%
- Certifications
- Certified for Microsoft Teams; plenum rated UL 2043 (air-handling spaces)
Other
- Type
- PoE 2-way coaxial network ceiling loudspeaker (general edition)
- Additional Features
- Active speaker with integrated DAC; low-profile design (120 mm); detachable, paintable magnetic grille; sound profile tuned for video conferencing (mid-range emphasis)
- Package Contents
- CS10 speaker, white mesh cover (black optional), Quick Start Guide, assembly fixing bracket, dust cover, deployment instruction template, bracing bridge, dust cover screw × 6 (M3 × 4)
- Accessories
- Optional: CS-BlackCover magnetic mesh cover, CS-PendantMount pendant enclosure
