65" · 4K UHD · Android 13
BenQ

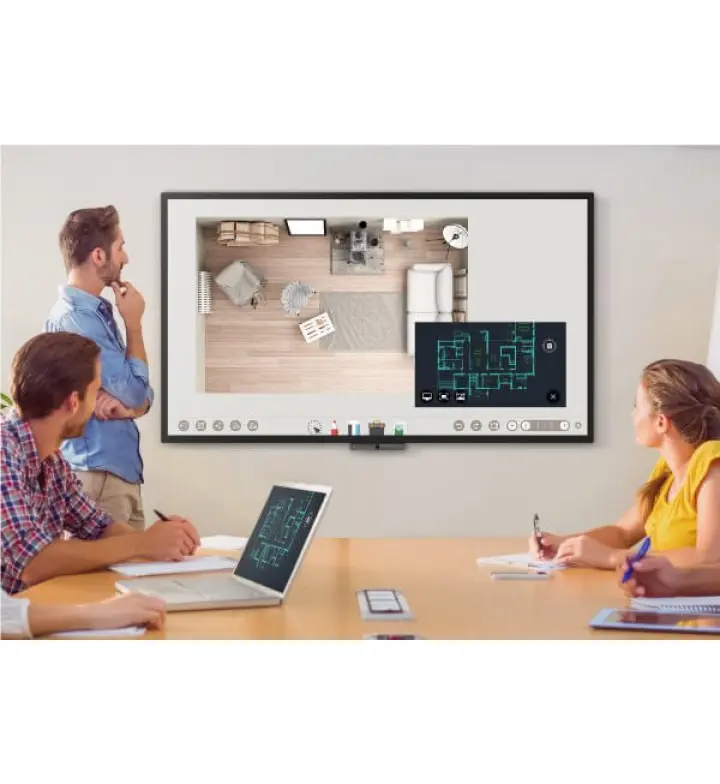

BenQ DuoBoard 86" 4K Interactive Panel, 20-Point Touch
SKU CP8601K
86-inch 4K UHD interactive flat panel with 20-point infrared touch, 400 nits brightness, and integrated blue light filter.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 20 points
- VESA
- VESA 800 × 600 mm
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- UHD 3840 × 2160 pixels
- Display Color
- 10-bit
- Brightness
- 350 nits
Touch and writing
- Touch Points
- 20 points
- Touch Technology
- Infrared
- Touch Response Time
- < 8 ms
Built-in system
- Operating System
- Android 8.0
- Processor
- A73 × 2 + A53 × 2
- GPU
- Mali-G51MP4
Description
The BenQ DuoBoard CP8601K is a large-format 86-inch 4K UHD interactive display designed for collaborative workspaces, boardrooms, and educational institutions. The 20-point infrared touch technology enables simultaneous interaction from multiple users, with 400 nits brightness ensuring visibility in well-lit office environments. Built-in blue light filter reduces eye strain during extended use.
The display offers full connectivity with three HDMI inputs, one HDMI output, VGA input, six USB ports (5× USB 2.0, 1× USB 3.0), Ethernet, and RS232 serial interface for system integration. Integrated NFC card reader and 4-channel microphone array support interactive and presentation-driven workflows. The 16W × 2 speaker system delivers clear audio for video conferencing and multimedia content.
Ideal for: Corporate boardrooms, collaborative design studios, educational lecture halls, training centers, and government meeting facilities requiring large-format interactive displays with high-resolution visuals and robust connectivity.
- Screen Size: 86 inches
- Resolution: 4K UHD (3840 × 2160)
- Touch Technology: 20-Point Infrared Multi-Touch
- Brightness: 400 nits
- Display Color Depth: 10-bit
- Connectivity: 3× HDMI In, 1× HDMI Out, 1× VGA, 1× Ethernet RJ45, 1× RS232
- USB Ports: 5× USB 2.0, 1× USB 3.0, 2× Touch USB (Type B)
- Audio: 16W × 2 speakers, 4-channel microphone array
- Additional Features: NFC card reader, Blue light filter, Anti-glare surface
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- UHD 3840 × 2160 pixels
- Display Color
- 10-bit
- Brightness
- 350 nits
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Surface Protection
- 7H tempered
Touch
- Touch Technology
- Infrared
- Touch Points
- 20 Points Multi Touch
- Touch Response Time
- < 8 ms
System
- Operating System
- Android 8.0
- Processor
- A73 × 2 + A53 × 2
- GPU
- Mali-G51MP4
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 3
- HDMI Output
- HDMI Out × 1
- VGA input
- 1 | 0
- USB Ports
- 4 × 2.0 + 3 × 3.0
- Touch USB ports
- 2 × 2.0
- Audio in
- Mic / PC Audio × 1_test
- Audio out
- Earphone × 1
- Ethernet
- 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 1
- Serial Port
- 1 | 0
Camera & audio
- Built In Microphone
- 6 (Max. pickup range 8m)
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 10 W
Physical & warranty
- Dimensions
- 1962.0 × 1167.0 × 85.0 mm (77.2 × 45.9 × 3.3 inch)
- Weight
- 85.5 kg
- Shipping Dimensions
- 2146 × 1326 × 280 mm (84.5 × 52.2 × 11.0 inch)
- VESA
- VESA 800 × 600 mm (4 × M8 × 25L)
- Mounting Orientation
- Landscape
- Wall Mount
- 700 × 400 mm (VESA)
- Power Consumption
- 187 W
- Power Standby
- <0.5 W
- Operating Temperature
- 0°C ~ 40°C | 32°F ~ 104°F
- Operating Humidity
- 10% ~ 90% RH non-condensing
Other
- Package Contents
- 1 × VGA(5 m | 16.4 ft), 1 × HDMI (1.5 m | 4.9 ft), 1 × USB (3 m | 9.8 ft)
- Included Cables
- Power Cord × 5 (1.8m), Power Cord × 2 (1.5m), HDMI Cable × 1 (1.5m), VGA Cable × 1 (1.5m), Touch USB Cable × 1 (3m)
- Accessories
- Remote Controller × 1, Touch Pen (Stylus) × 2, Quick Start Guide × 1, Software License Card × 1
