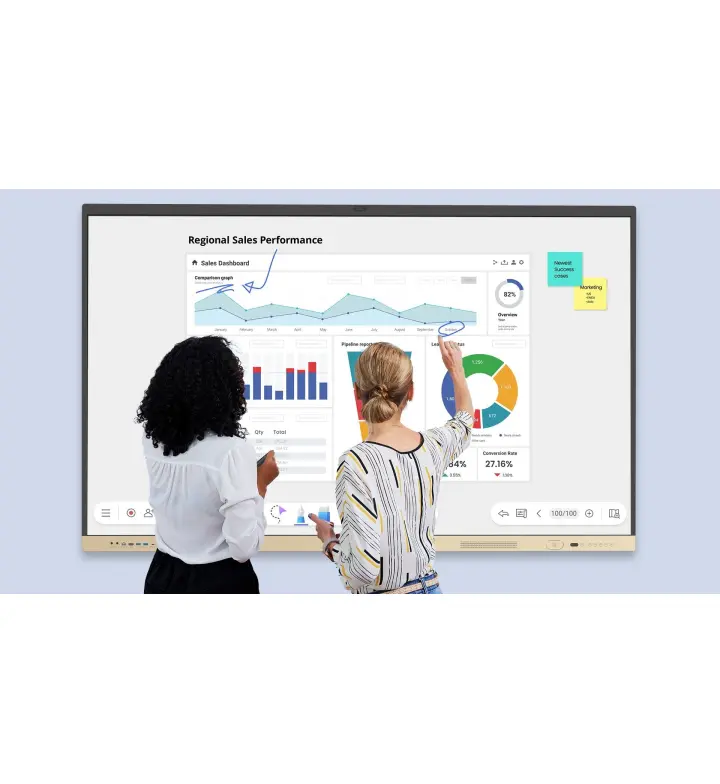

BenQ Board Essential RE8604FV 86" 4K Interactive Panel, 40pt Touch
SKU RE8604FV
86" 4K UHD interactive display with 40-point infrared touch, 450 cd/m² brightness, Android 13, NFC reader, octa-core processor for enterprise collaboration.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- Infrared
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32767 × 32767
Built-in system
- RAM
- 8 GB
- Operating System
- Android 14.0 (EDLA)
- Processor
- ARM 4× Cortex-A73 + 4× Cortex-A53
- GPU
- Arm Mali-G52 MP8
Description
BenQ Board Essential 86-inch 4K UHD interactive flat panel with 40-point infrared touch and 450 cd/m² brightness. Designed for corporate board meetings, large classrooms, and institutional collaboration spaces. Infrared touch technology with anti-glare smooth glass works reliably in bright conference rooms. Supports 2 HDMI 2.0 inputs, DP 1.2a, dual Type-C (65W PD + DP Alt mode), VGA, and dual Gigabit LAN. Android 13 OS with 8GB RAM and selectable 32GB or 64GB storage. Octa-core processor (Cortex A73×4 + A53×4) handles complex applications. Optional OPS PC slot accepts mini Windows PC or thin client.
Touch accuracy of ±1 mm with <5 ms response suits precision input and fast-paced collaboration. NFC card reader enables single-sign-on workflows. Palm rejection distinguishes hand from stylus. SD card slot allows portable media playback. 40W stereo speakers (20W×2) provide full-room audio. Ambient light sensor and Bluetooth 5.2 round out the connectivity. Dual touch USB ports enable external input devices. Auto-brightness ensures optimal viewing in varied lighting.
Ideal for: Executive boardrooms, government offices, university collaboration spaces, interactive training rooms, and corporate video conference centres in Oman.
- 86-inch 4K UHD (3840×2160), 10-bit colour, 60 Hz refresh
- 40-point infrared touch, ±1 mm accuracy, <5 ms response, 32767×32767 resolution
- 450 cd/m² brightness, anti-glare smooth glass, 178° H/V viewing angle
- Android 13, Octa-core CPU (A73×4+A53×4), Mali-G52 MP8 GPU, 8GB RAM, 32/64GB storage
- 2× HDMI 2.0, DP 1.2a, Type-C×2 (65W PD, DP Alt), VGA, RS232, Gigabit LAN×2
- NFC reader, SD card slot, palm rejection, Bluetooth 5.2, Wi-Fi 6
- 40W speakers (20W×2), optional OPS slot, VESA 800×600, 63.7 kg
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 450 cd/m²
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Surface Protection
- Anti-glare smooth glass
Touch
- Touch Technology
- Infrared
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- ±1 mm
- Touch Resolution
- 32767 × 32767
- Touch Response Time
- < 5 ms
System
- Operating System
- Android 14.0 (EDLA)
- Processor
- ARM 4× Cortex-A73 + 4× Cortex-A53
- GPU
- Arm Mali-G52 MP8
- RAM
- 8 GB
- Storage
- 32 GB / 64 GB
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- HDMI Output
- HDMI Out × 1
- DisplayPort
- DisplayPort 1.2a × 1
- VGA input
- VGA × 1
- USB-C input
- USB-C (video, audio, touch, data, 65 W charging)
- USB Ports
- USB 3.0 × 2, USB 2.0 × 2
- Touch USB ports
- Touch USB 2.0 × 2
- Audio in
- Audio in × 1
- Audio out
- Audio out × 1
- Ethernet
- RJ45 (1000 Mbps Port) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.2
- Serial Port
- RS-232 × 1
- SD card slot
- SD card slot × 1
Camera & audio
- Camera
- 4K UHD, 13 MP, Auto focus, privacy cover
- Built In Microphone
- 8-mic array, 8 m pickup range
- Microphone Range
- 8 m
- Speaker Type
- Built-in Speakers
- Speaker Output
- 40 W (20 W × 2)
Physical & warranty
- Dimensions
- 1961.8 × 1183.4 × 87.7 mm
- Weight
- 63.7 kg
- Shipping Dimensions
- 2095 × 1265 × 185 mm
- VESA
- 800 × 600 mm
- Mounting Orientation
- Landscape
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- 106.8 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0 to 40 °C
- Operating Humidity
- 20% to 80% RH
Other
- Key Features
- Palm rejection, Wake on LAN, NFC card reader, Sensors: Ambient light, IR receiver, NFC
- Package Contents
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable, Remote Control, Stylus × 2, Quick Start Guide, Regulation Sheet, Wall Mount
- Included Cables
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable
- Accessories
- Remote Control, Stylus × 2, Quick Start Guide, Regulation Sheet, Wall Mount
