LG CreateBoard 86" 4K Interactive Display, 440 cd/m², 40-touch, Android 11
Price on request
LG

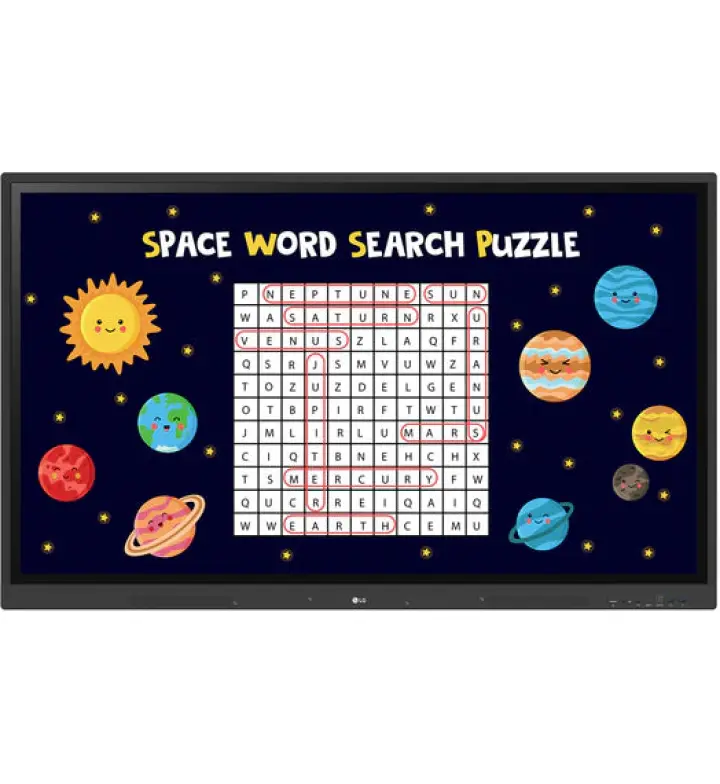

LG CreateBoard 86" 4K Interactive Display, 440 cd/m², 40-touch, Android 11
SKU 86TR3DK-BX
86-inch 4K interactive display with 40-point infrared touch, 440 cd/m² brightness, ≤5 ms response, Android 11.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 11
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 440 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Accuracy
- ±1 mm
- Touch Response Time
- ≤ 5 ms
Built-in system
- Operating System
- Android 13
- Processor
- ARM 4× Cortex-A55
- GPU
- Mali G52MP2
- RAM
- 8 GB
Description
The LG CreateBoard 86TR3DK-BX is an 86-inch 4K UHD interactive panel with 440 cd/m² brightness and 40-point infrared multi-touch. Android 11 with 4 GB RAM and 32 GB storage supports collaboration via HDMI (3 inputs, HDCP 2.2), VGA, USB-C, and dual gigabit Ethernet. Optional OPS PC slot allows Windows OS integration.
Delivers ≤5 ms touch response with ±1 mm accuracy on anti-glare glass. Dual 15 W speakers and light sensor provide optimized audio in varied environments. 178° viewing angles allow clear visibility from wide seating arrangements. 58.6 kg weight; mounts to 800×600 mm VESA standard for high-traffic venues.
Ideal for: Government auditoriums, university halls, hospital training departments, and corporate boardrooms across Oman requiring large-format 4K displays with mixed-input connectivity (HDMI, VGA, USB-C).
- Resolution: 4K UHD
- Screen size: 86 inches
- Brightness: 440 cd/m²
- Touch points: 40, infrared, ≤5 ms response
- Operating system: Android 11
- Processor: Quad Core A55
- RAM/Storage: 4 GB / 32 GB
- Connectivity: HDMI (3), VGA, USB-C, RJ45 (2)
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 3840 × 2160 (4K UHD)
- Display Color
- 10-bit (1.07 billion colours)
- Brightness
- 440 cd/m²
- Backlight
- Direct
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
- Ambient Light Sensor
- Yes
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- ±1 mm
- Touch Response Time
- ≤ 5 ms
System
- Operating System
- Android 13
- Processor
- ARM 4× Cortex-A55
- GPU
- Mali G52MP2
- RAM
- 8 GB
- Storage
- 64 GB
- OPS slot
- Optional
- Sensors
- Auto Brightness Sensor
Connectivity
- HDMI Input
- HDMI In × 3
- HDMI Output
- HDMI Out × 1
- VGA input
- VGA × 1
- USB-C input
- USB Type C × 1
- USB-C functions
- USB-PD, DP-Alt
- USB Ports
- USB 3.0 × 4, USB 2.0 × 1
- Touch USB ports
- Touch USB × 2
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Ethernet
- RJ45 (1000 Mbps Port) × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS232 × 1
- Wake On Lan
- Yes
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 15W × 2
Physical & warranty
- Dimensions
- 1957 × 1160 × 100 mm
- Weight
- 58.6 kg
- Shipping Dimensions
- 2110 × 1283 × 225 mm
- VESA
- 800 × 600 mm
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- 385 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0 °C to 40 °C
- Operating Humidity
- 10%~90% RH
Other
- Key Features
- Wake on LAN, Sensors: Auto brightness
- Package Contents
- Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1, Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
- Included Cables
- Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, HDMI Cable (3 M × 1)
- Accessories
- Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
