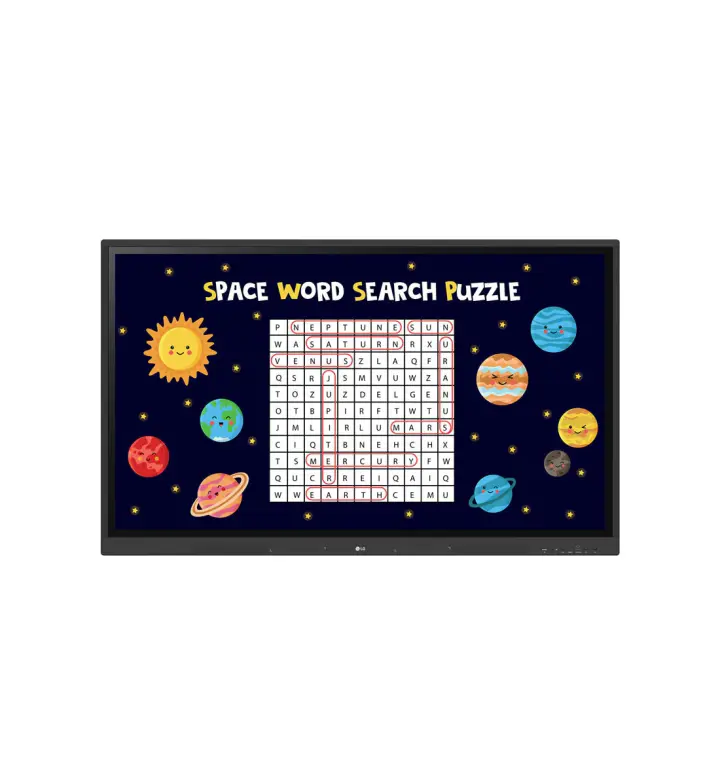

LG CreateBoard 86TR3DK-BY 86" 4K, 350-400 nits, Quad-core

LG CreateBoard 86TR3DK-BY 86" 4K, 350-400 nits, Quad-core

Name: SmartRooms Oman
Address: Muscat, OM
Telephone: +968 9664 1360

MPN 86TR3DK-B.YUSQ SKU 86TR3DK-BY

86-inch 4K interactive display, Quad-core A55, 40-point touch, Android 13, 350-400 nits, WiFi 6.

Screen size: 86"
Resolution: 4K UHD
System: Android 13
OPS slot: Yes, Optional

Pricing

Price on request in OMR

Include in your quote

Installation Mounting / trolley OPS PC (Windows) Tender documents

Written quote usually within one business day Download datasheet (PDF)

Written quotation in OMR

Pricing, availability and warranty on one document.
Manufacturer warranty

Terms confirmed on your quotation.
All 11 governorates

Delivered from Muscat to Dhofar.
Quotations in Arabic & English

Ask for Arabic, English or both.

The product, in detail.

Screen and picture

Screen Size: 86"
Resolution: 3840×2160 (4K UHD), 16:9
Display Color: 10-bit (1.07 billion colours)
Brightness: 440 nits

Touch and writing

Touch Technology: Infrared
Touch Accuracy: ±1 mm
Touch Response Time: ≤ 5 ms

Built-in system

Operating System: Android 13
Processor: ARM 4× Cortex-A55
GPU: Mali G52MP2
RAM: 8GB

Description

The LG CreateBoard 86TR3DK-BY provides large-format interactive display for auditorium and training center applications. Powered by Android 13 with Quad-core A55 processor and Mali G52MP2 GPU. 4K UHD resolution with 350-400 nits brightness and 10-bit color delivers detailed visuals with excellent color accuracy. Anti-glare smooth glass surface ensures optimal optical performance.

40-point infrared multi-touch with ≤5 ms response and ±1mm accuracy supports high-resolution writing and collaborative interaction. USB-C with USB-PD and DisplayPort Alt Mode provide modern connectivity. Three HDMI inputs with HDCP 2.2, optional OPS slot, VGA input, single Gigabit RJ45 and Wi-Fi 6 (802.11ax) enable comprehensive system integration. Integrated stereo speakers (15W × 2) deliver audio without external equipment.

Ideal for: Large auditoriums, government training centers, corporate training facilities and university lecture halls.

Screen: 86", 4K UHD, 10-bit, 350-400 nits
Processor: Quad-core A55, Mali G52MP2, 8 GB RAM
Storage: 64 GB
Touch: 40 points, Infrared, ≤5 ms, ±1mm
Connectivity: HDMI ×3, USB-C ×1, RJ45, VGA, WiFi 6
Audio: 15W × 2 speakers
Warranty: 3 years

Specifications

Manufacturer specifications · confirmed on your quotation

Display

Screen Size: 86"
Resolution: 3840×2160 (4K UHD), 16:9
Display Color: 10-bit (1.07 billion colours)
Brightness: 440 nits
Backlight: Direct
Refresh Rate: 60Hz
Viewing Angle: 178° x 178°
Ambient Light Sensor: Yes
Surface Protection: Anti-Glare Smooth Glass

Touch

Touch Technology: Infrared
Touch Points: 40 Point Max Multi-Touch (40 Point Max for Windows, 32 Point Max for Android)
Touch Accuracy: ±1 mm
Touch Response Time: ≤ 5 ms

System

Operating System: Android 13
Processor: ARM 4× Cortex-A55
GPU: Mali G52MP2
RAM: 8GB
Storage: 64GB
OPS slot: Yes, Optional
Sensors: Auto Brightness Sensor

Connectivity

HDMI Input: HDMI In × 3
HDMI Output: HDMI Out × 1
VGA input: 1 (VGA)
USB-C input: 1 (USB Type-C with PD)
USB-C functions: USB-PD, DP-Alt
USB Ports: USB 3.0 ×4, USB 2.0 ×1
Touch USB ports: Touch USB × 2
Audio in: Audio in × 1
Audio out: Audio out × 1
Ethernet: RJ45 (Gigabit) × 2
Wi-Fi: Wi-Fi 6 (802.11ax)
Bluetooth: Bluetooth 5.0
Serial Port: RS-232C x1
Wake On Lan: Yes

Camera & audio

Speaker Type: Built-in Speakers
Speaker Output: 2 × 15 W

Physical & warranty

Dimensions: 77.0 × 45.7 × 3.9 in / 1957 × 1160 × 100 mm
Weight: 129.2 lbs / 58.6 kg
Shipping Dimensions: 83.1 × 50.5 × 8.9 in / 2110 × 1283 × 225 mm
VESA: 800 × 600 mm
Wall Mount: VESA 800 × 400
Power Consumption: 385W (Typ.) / 580W (Max)
Power Standby: ≤0.5W
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% RH
Warranty: 3 Year Limited

Other

Model: LG CreateBoard TR3DK Series (Gen 2)
Key Features: Wake on LAN, Sensors: Auto brightness
Package Contents: Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1, Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
Included Cables: Power Cord 3 M × 1, USB Cable (Type A-Type B) 5 M × 1, HDMI Cable 3 M × 1
Accessories: Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module
