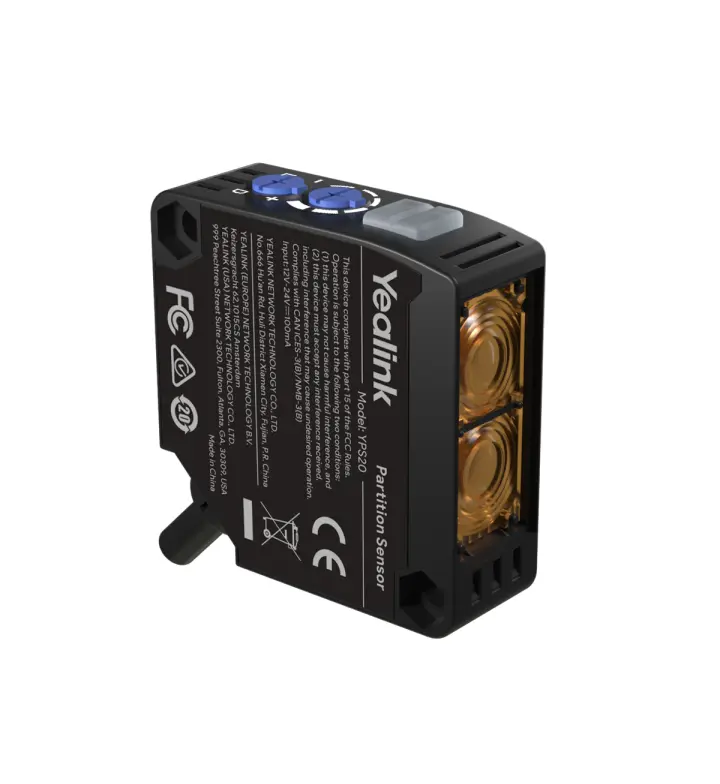

Yealink YPS20 Infrared Partition Sensor, 1.5 m Range
SKU YPS20
Surface-mount infrared partition sensor with 1.5 m detection and a 10 m cable, connecting to Yealink AP08 to detect divisible-room layouts automatically.
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Built-in system
- Sensors
- Diffuse-reflection infrared sensor, 850 nm IR LED; detection distance 1.5 m; response time less than 0.5 ms
Power
- Material
- ABS housing, PMMA lens
- Power Consumption
- Power supply: DC 12-24 V; consumption less than 25 mA
- Operating Temperature
- -35 °C - 55 °C (storage -40 °C - 70 °C, no icing or condensation)
Description
The Yealink YPS20 is a surface-mount partition sensor for divisible meeting rooms. It uses a diffuse-reflection infrared beam from an 850 nm LED to sense the position of a movable partition at up to 1.5 m, and ships with a 10 m cable so it can be positioned where it best detects the partition.
Wired to the GPIO interface of the Yealink AP08, the YPS20 lets Yealink Room Designer software and the Yealink Room Controller switch the room's devices to the right layout when the wall opens or closes. Response time is less than 0.5 ms, sensitivity is set with a single knob, and a 270° knob selects Dark ON or Light ON. Orange and green indicators show action and stable status. The sensor runs on DC 12-24 V and draws less than 25 mA, with NPN/PNP output and reverse and short-circuit protection. Its ABS housing with PMMA lens is rated IP65 to the IEC standard.
Ideal for: hotel ballrooms, training suites and divisible boardrooms in Oman where a Yealink AP08-based room system must follow the partition without manual changes.
- Sensing: diffuse reflection, 850 nm infrared, 1.5 m detection distance
- Response time: less than 0.5 ms
- Output: NPN/PNP, 100 mA
- Power: DC 12-24 V, less than 25 mA
- Protection: IP65 (IEC standard); ABS housing, PMMA lens
- Operating: -35 °C - 55 °C, 35% - 85% RH
- Cable: 10 m
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Sensors
- Diffuse-reflection infrared sensor, 850 nm IR LED; detection distance 1.5 m; response time less than 0.5 ms
Physical & warranty
- Material
- ABS housing, PMMA lens
- Power Consumption
- Power supply: DC 12-24 V; consumption less than 25 mA
- Operating Temperature
- -35 °C - 55 °C (storage -40 °C - 70 °C, no icing or condensation)
- Operating Humidity
- 35% - 85% RH (storage 35% - 95% RH, no condensation)
- Certifications
- IP65 (IEC standard)
Other
- Type
- Surface-mount infrared partition sensor for divisible rooms
- Key Features
- Standard detection object: white drawing paper 300 × 300 mm; return difference ≤20%; Dark ON / Light ON action mode set by knob; 270° knob switch; single-knob sensitivity adjustment
- Additional Features
- NPN/PNP output (selected by wiring), 100 mA output current; action indicator (orange) and stable indicator (green); power reverse, output short-circuit and output reverse protection
- Included Cables
- 10 m cable
- Compatible Models
- Yealink AP08 (GPIO interface); Yealink Room Controller / Room Designer software
- More Information
- Insulation resistance more than 20 MΩ (DC 500 V megohm meter); withstand voltage AC 1500 V 50/60 Hz for 1 min; vibration 1.5 mm at 10-55 Hz, 2 h each in X/Y/Z; impact 300 m/s², 10 times each in X/Y/Z; ambient light: incandescent below 3000 lx, sunlight below 10000 lx
